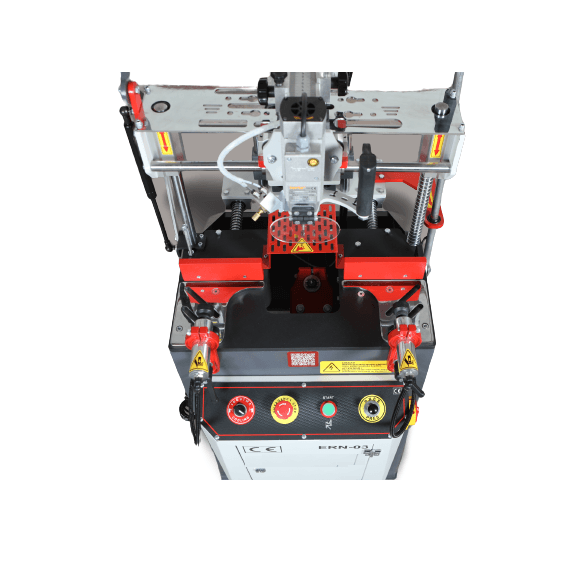

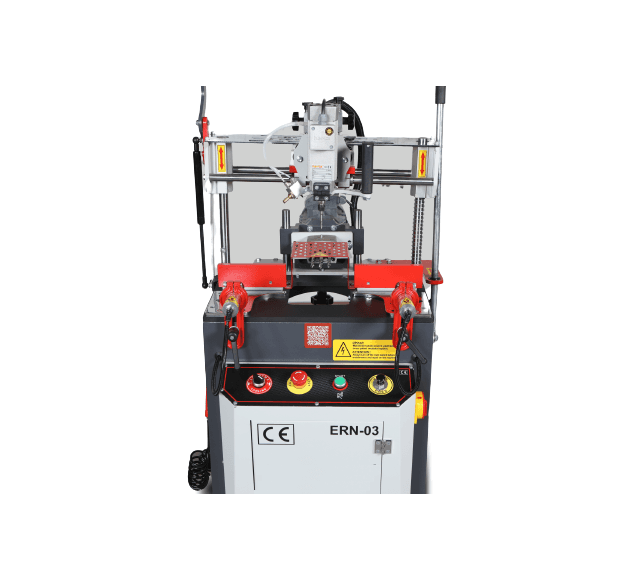

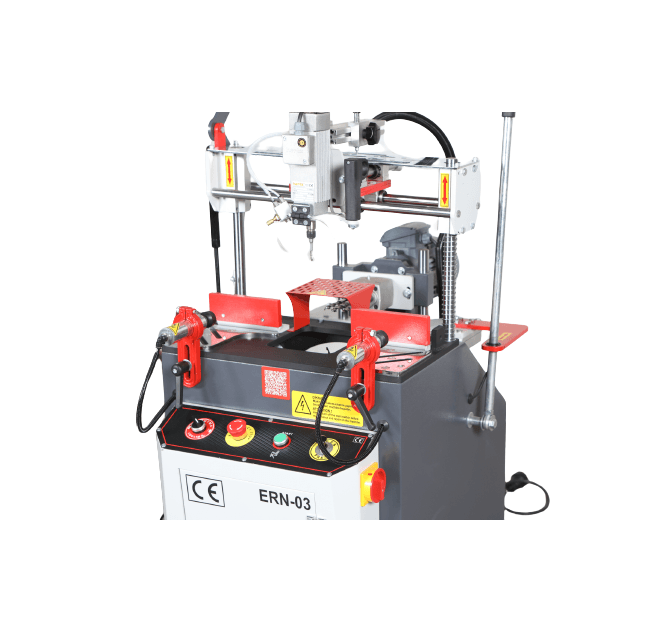

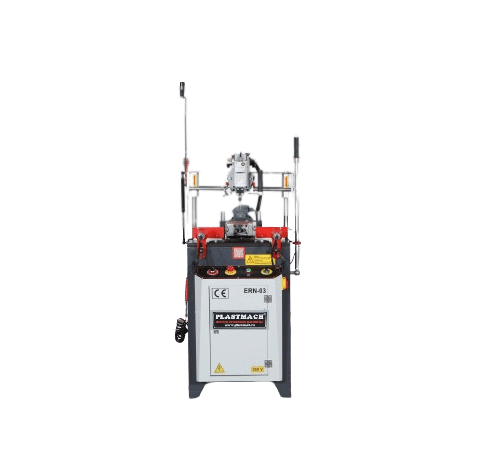

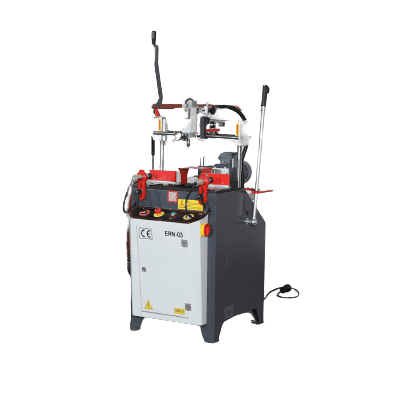

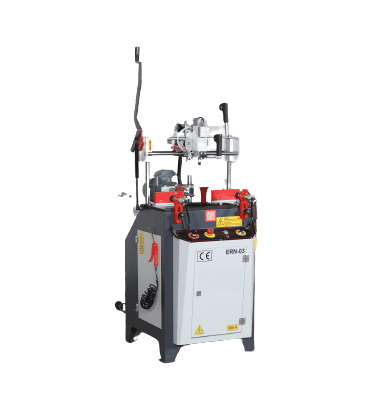

3-in-1 Copy Router - CN501A

Name: 3-in-1 Copy Router - CN501A
Brand: PLASTMACH
SKU: CN501A
Price: 14444.23 RON
Availability: InStock

PLASTMACH · code CN501A

14.444,23 RON

excl. VAT 11.937,38 RON · / unit

Ask about this machine

Buying as a company? Business prices after approval

Collection in person in Dumbrăvița, Timiș countyMonday–Friday 08:00–16:30
Courier delivery — the cost is calculated in the basket at checkout
Payment by bank transfer, or in cash on collection
12-month warranty
Commissioning and training on request

Technical specifications

Dimensions (L × W × H)	950 × 750 × 1450 mm
Weight	154 kg
Warranty	12 months
Power Supply	380 V, 3 ph, 50 Hz
Total electrical power	2.3 kW
Three-hole motor	1.5 kW / 380 V / 3 ph / 50 Hz
Copy router spindle motor	0.55 kW / 220 V / 3 ph / 300 Hz
Water slot spindle motor	0.65 kW / 220 V / 1 ph / 50 Hz
0.75 kW frequency converter	220 V / 1 ph / 50 Hz to 220 V / 3 ph / 300 Hz
Air consumption	9 L/min
Air pressure	6-8 bar
Machine height	1450 mm
Machine Depth	950 mm

Machine Width	550 mm
Machine Weight	155 kg
Min. Machinable Profile Height	40 mm
Max. Machinable Profile Height	120 mm
Max. Machinable Profile Width	150 mm
Copy Milling Capacity	x: 260 mm / y: 105 mm / z: 90 mm
L1	125 mm
L2	130 mm
L3	125 mm
øD1	10 mm
øD2	13 mm
øD3	10 mm

Description

Installation and training included in the price.

FREE delivery in Romania.

The machines and equipment we sell are CE certified.

Three Operations in One Machine

Allows copy routing, three-spindle drilling and drainage operations on a single machine. In addition, its ease of use increases production efficiency.

Maximum Tool Life

Tool life is extended by means of the double and triple drilling unit and the low-speed motor.

Anti-Friction Movement System

Thanks to its universal template, it enables all copy routing operations. The movable routing head moves smoothly on heat-treated shafts by means of ball bearings. This extends the service life of the shafts while reducing operating costs.

Specifications:

> Designed for copy routing, triple handle drilling and water slot drilling operations on PVC profiles.

> Three independent routing units: one horizontal, one vertical and one angled, tiltable up to 60 degrees.

> The horizontal unit can drill three holes at a fixed spacing.

> The vertical unit can be used for copy routing with the copy template.

> The angled unit can be used for automatic cutting of condensation or water drainage slots.

> Movement on recirculating ball bearings provides high stability and precision to the head unit, making it possible to work on any type of PVC profile.

> Smooth movement of the units is achieved by means of dampers.

> 1:1 copy routing scale.

> Independent horizontal and vertical pneumatic clamping kits.

> Horizontal pneumatic clamping kit.

> Adjustable operating depth.

> Side length stop.
