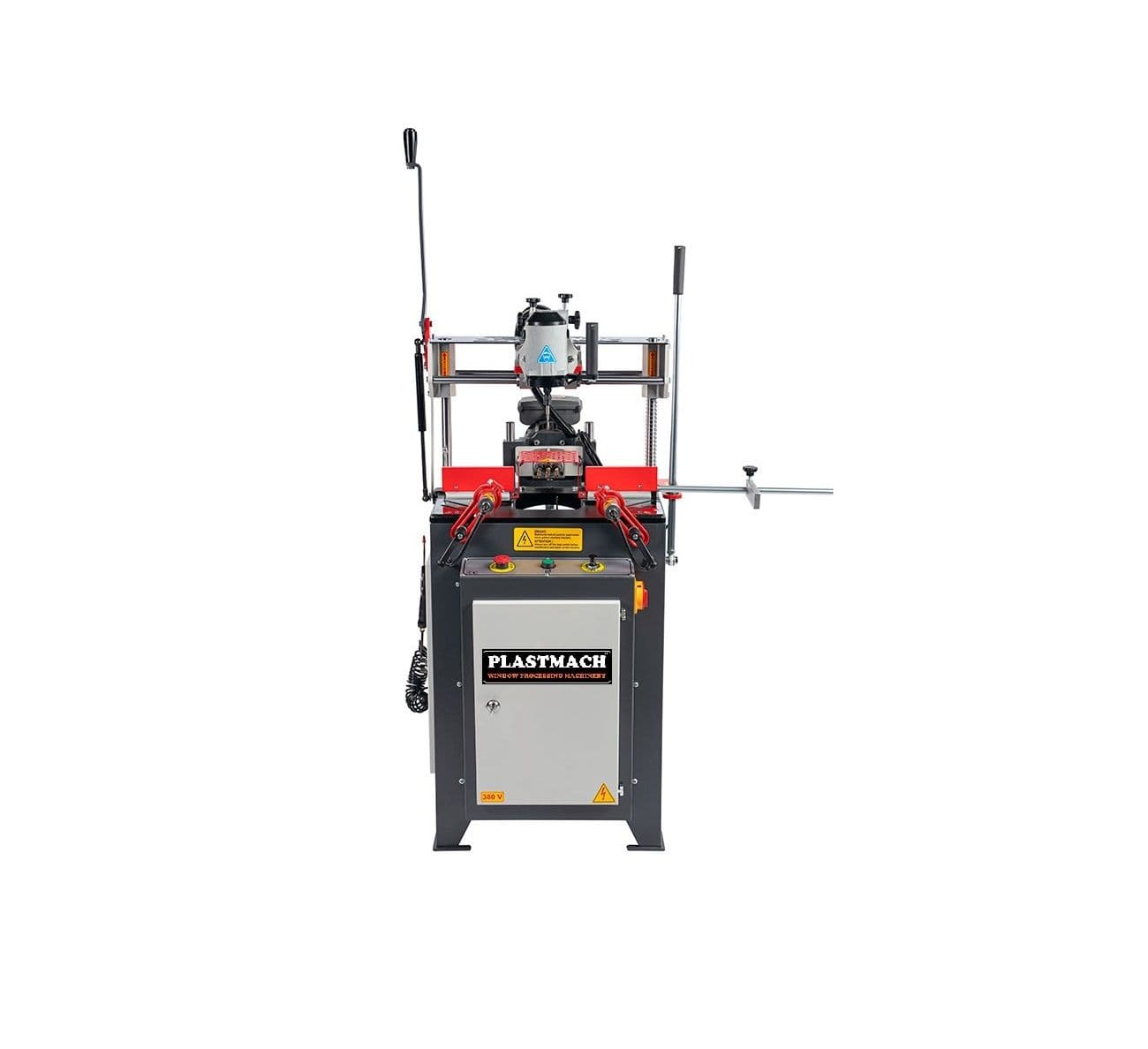

3-in-1 Copy Router - CN501

Name: 3-in-1 Copy Router - CN501
Brand: PLASTMACH
SKU: CN501
Price: 11555.38 RON
Availability: InStock

PLASTMACH · code CN501

11.555,38 RON

excl. VAT 9.549,90 RON · / unit

Ask about this machine

Buying as a company? Business prices after approval

Collection in person in Dumbrăvița, Timiș countyMonday–Friday 08:00–16:30
Courier delivery — the cost is calculated in the basket at checkout
Payment by bank transfer, or in cash on collection
12-month warranty
Commissioning and training on request

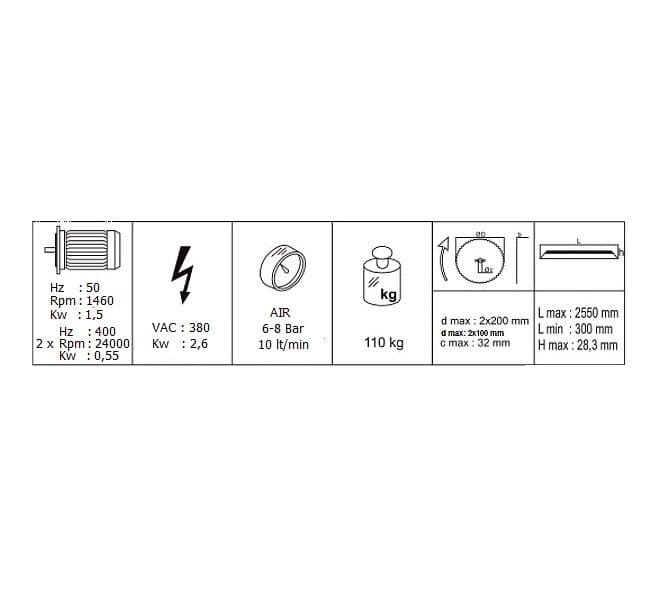

Technical specifications

Dimensions (L × W × H)	950 × 650 × 1650 mm
Weight	100 kg
Warranty	12 months
Power Supply	380 V, 3 ph, 50 Hz
Total Electrical Power	3.1 kW
Three-Hole Motor	1.5 kW / 380 V / 3 ph / 50 Hz
Copy-routing spindle motor	0.95 kW / 220 V / 1 ph / 50 Hz
Water slot spindle motor	0.65 kW / 220 V / 1 ph / 50 Hz
Air consumption	9 L/min
Air pressure	6-8 bar
Machine height	1650 mm
Machine depth	950 mm

Machine width	650 mm
Machine weight	100 kg
Min. processable profile height	40 mm
Max. Machinable Profile Height	120 mm
Max. Machinable Profile Width	150 mm
Copy Router Capacity	x: 260 mm / y: 105 mm / z: 90 mm
L1	125 mm
L2	130 mm
L3	125 mm
øD1	10 mm
øD2	13 mm
øD3	10 mm

Description

FREE delivery in Romania.

The machines and equipment we sell are CE certified.

Specifications:

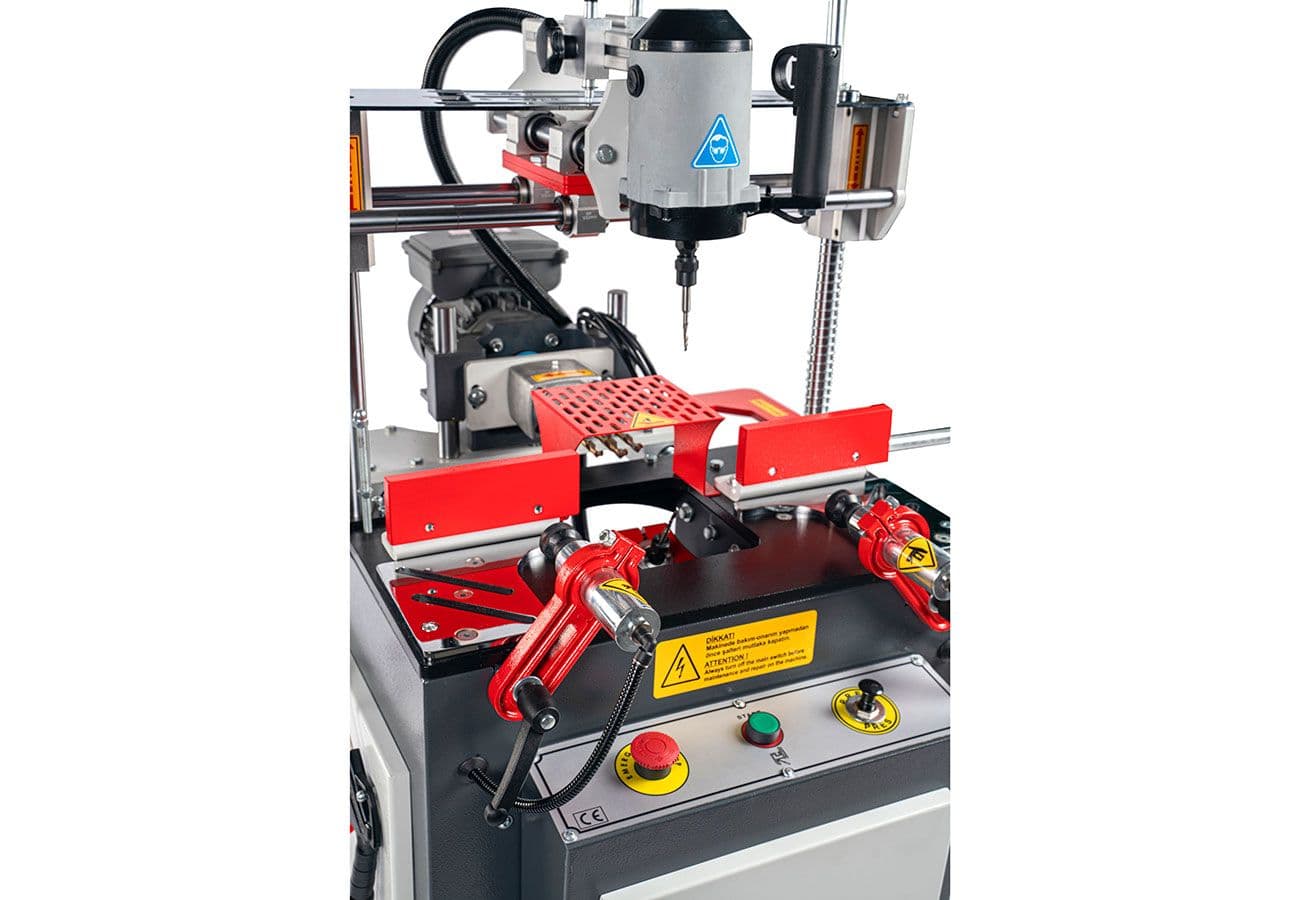

> Designed for copy routing, triple handle-hole drilling and water drainage slot drilling operations on PVC profiles.

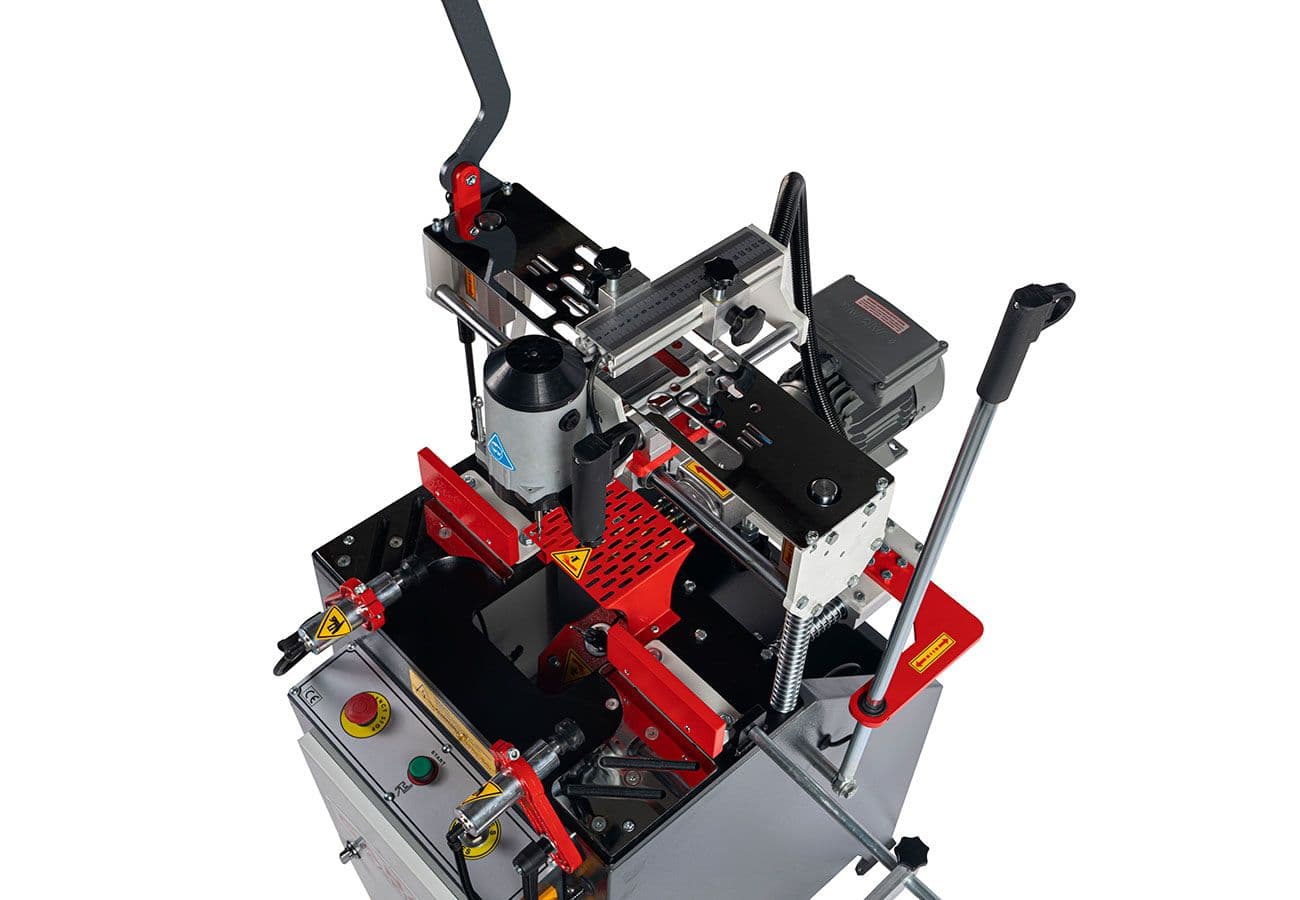

> Three independent routing units: one horizontal, one vertical and one angled, tiltable up to 60 degrees.

> The horizontal unit can drill three holes at a fixed spacing.

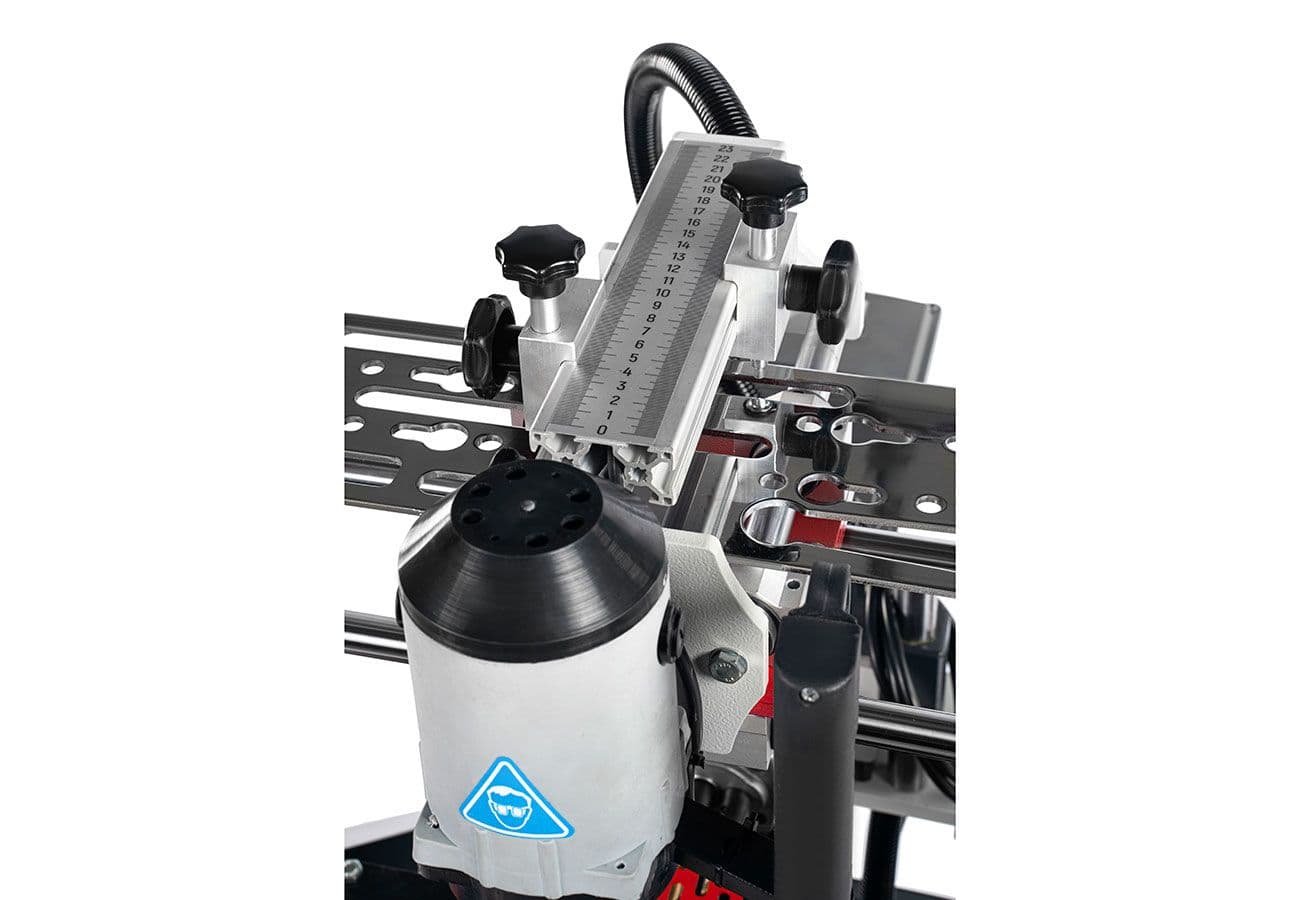

> The vertical unit can be used for copy routing with the copy template.

> The angled unit can be used for automatic cutting of condensation or water drainage slots.

> Movement on recirculating ball bearings ensures high stability and precision of the head unit, making it possible to work on any type of PVC profile.

> Smooth movement of the units is achieved by means of dampers.

> 1:1 copy-routing scale.

> Horizontal pneumatic clamping kit.

> Adjustable operating depth.

> Side length stop.
