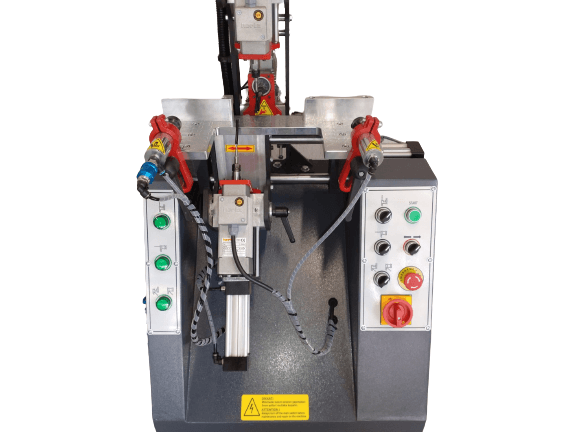

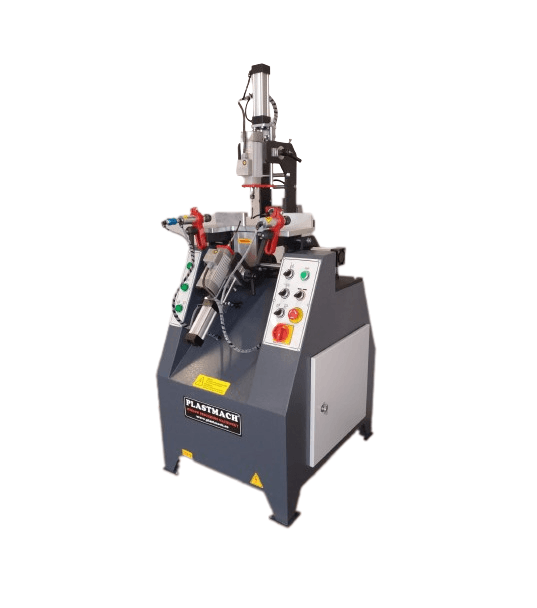

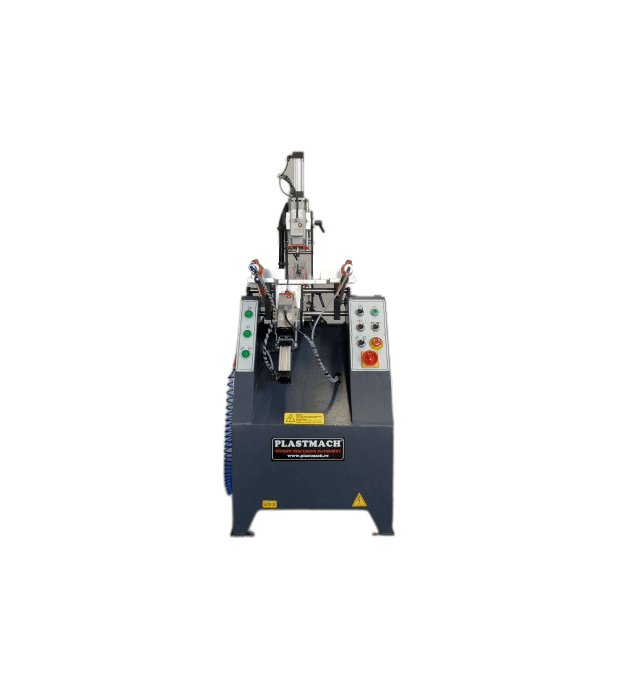

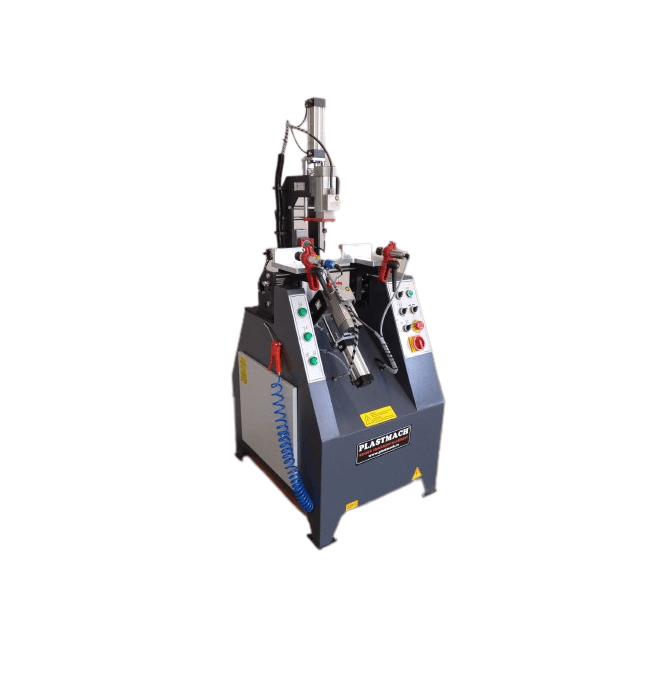

Triple Drainage Slot Router - CN521
PLASTMACH · code CN521
Buying as a company? Business prices after approval
- Collection in person in Dumbrăvița, Timiș countyMonday–Friday 08:00–16:30
- Courier delivery — the cost is calculated in the basket at checkout
- Payment by bank transfer, or in cash on collection
- 12-month warranty
- Commissioning and training on request
Technical specifications
| Dimensions (L × W × H) | 650 × 950 × 1650 mm |
|---|---|
| Weight | 100 kg |
| Warranty | 12 months |
| Power Supply | 220 V, 1 ph, 50 Hz |
| Total Electrical Power | 2 kW |
| Drainage Slot Spindle Motor | 3 x 0.65 kW / 220 V / 1 ph / 50 Hz |
| Air Consumption | 9 L/min |
| Air pressure | 6-8 bar |
| Machine height | 1650 mm |
|---|---|
| Machine depth | 950 mm |
| Machine width | 650 mm |
| Machine weight | 100 kg |
| Min. workable profile height | 40 mm |
| Max. workable profile height | 120 mm |
| Max. workable profile width | 150 mm |
Description
12-month warranty
FREE delivery in Romania.
The machines and equipment we sell are CE certified.
Specifications:
> Designed for routing drainage slots in PVC profiles.
> Three independent routing units: one horizontal, one vertical and one angled, tiltable up to 60 degrees.
> The angled unit can be used for automatic cutting slots for condensation or water drainage.
> Ball recirculation bearing movement ensures high stability and precision of the head unit, making it possible to work on any type of PVC profile.
> Independent horizontal and vertical pneumatic clamping kits.
> Horizontal pneumatic clamping kit.
> Adjustable operating depth.
> Side length stop.
