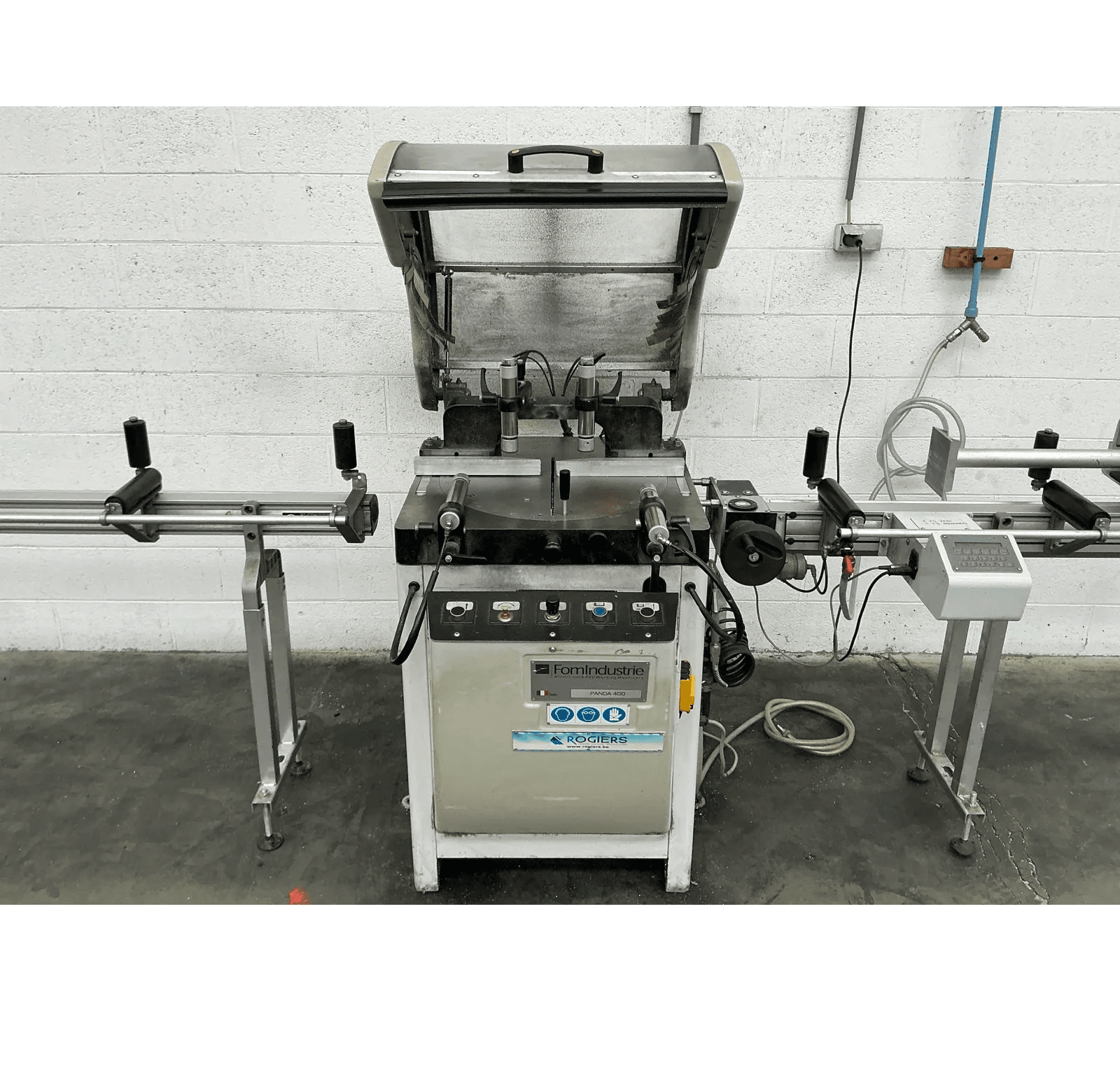

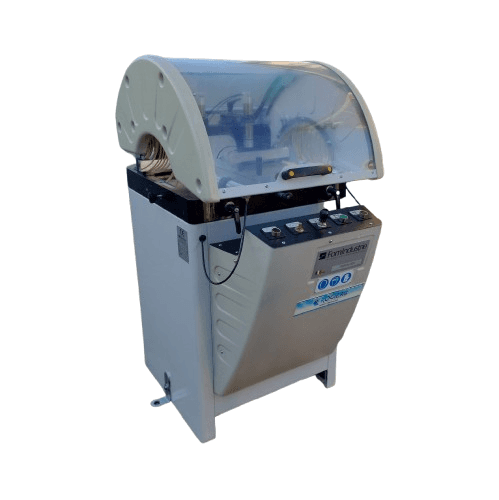

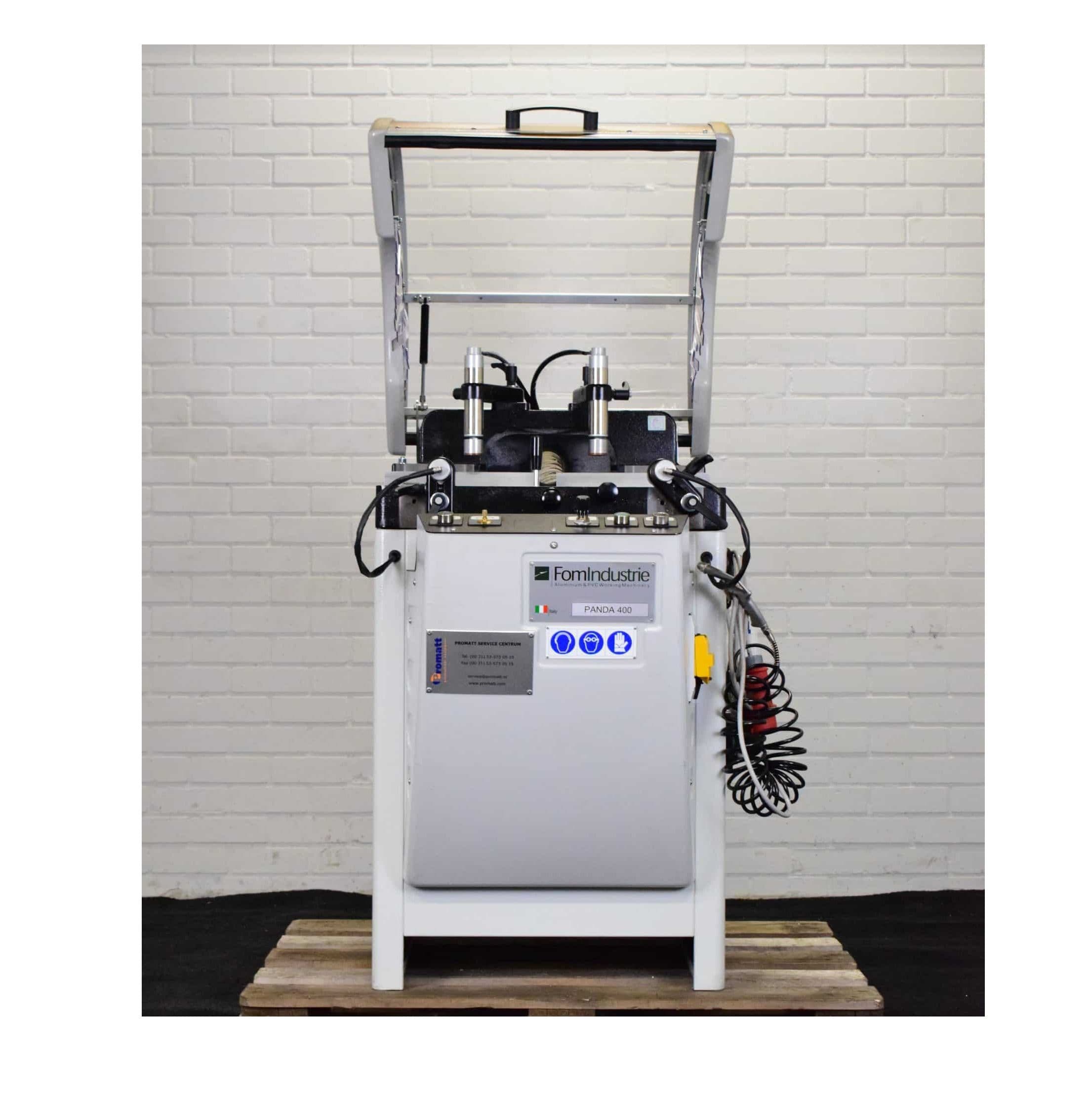

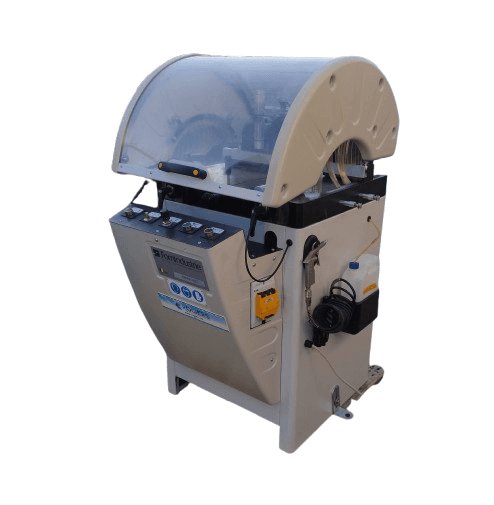

Automatic PVC Profile Cutting Machine (Q400) - FOM INDUSTRIE (PANDA400)

Name: Automatic PVC Profile Cutting Machine (Q400) - FOM INDUSTRIE (PANDA400)
Brand: FOM INDUSTRIE
SKU: PANDA400
Price: 25672.19 RON
Availability: InStock

FOM INDUSTRIE · code PANDA400

25.672,19 RON

excl. VAT 21.216,69 RON · / unit

Ask about this machine

Buying as a company? Business prices after approval

Collection in person in Dumbrăvița, Timiș countyMonday–Friday 08:00–16:30
Courier delivery — the cost is calculated in the basket at checkout
Payment by bank transfer, or in cash on collection
6-month warranty
Technically checked before sale
Commissioning and training on request

Technical specifications

Dimensions (L × W × H)	1000 × 710 × 1400 mm
Weight	240 kg
Warranty	6 months
Power Supply	380 V, 3 ph, 50-60 Hz
Spindle Speed	2810 RPM
Total kW	1,8 kW
Air Pressure	6-8 bar
Air consumption	41 L/min

Minimum machinable profile length	100 mm
Saw blade outside diameter	Ø400 mm

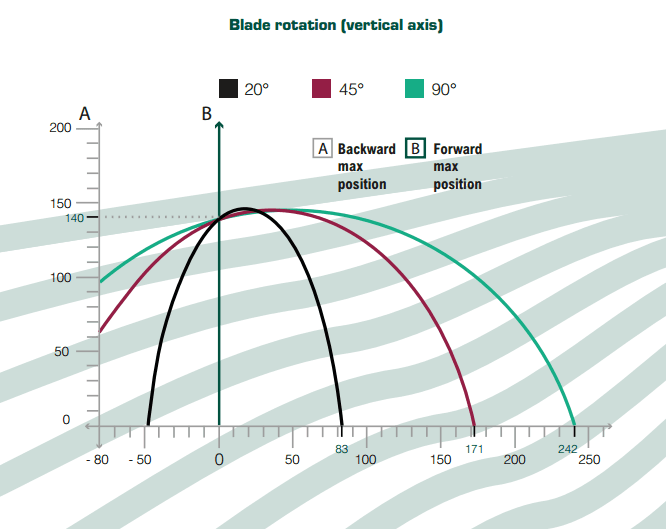

Maximum cutting height	140 mm
Saw blade bore diameter	Ø32
Saw blade thickness	4.2 mm
Number of teeth	120

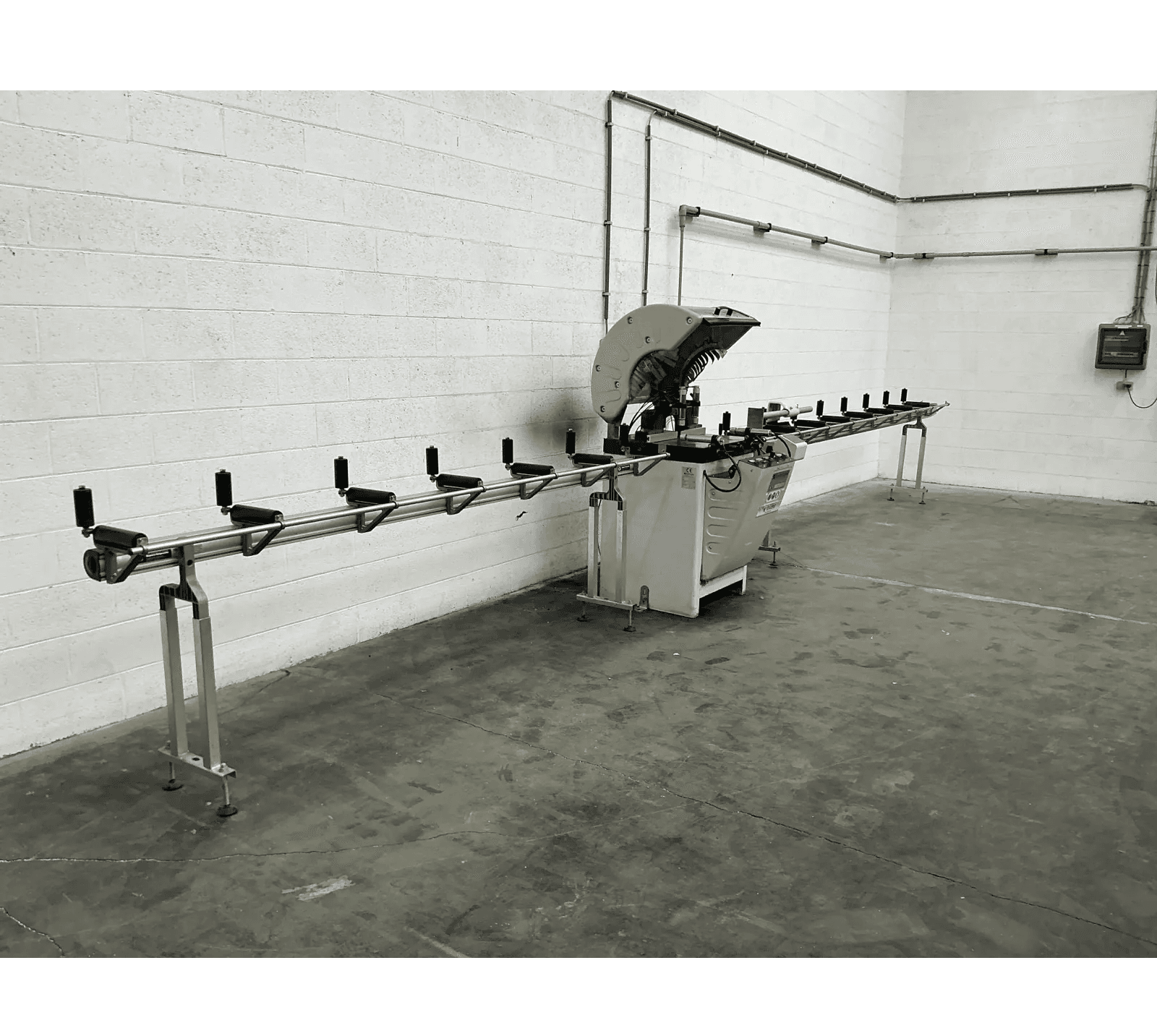

Conveyor	Length: 3000 mm / Width: 350 mm / Adjustable height / Both sides.

Description

Automatic PVC Profile Cutting Machine (Q400) FOM INDUSTRIE - PANDA400, 2012

Delivery available at extra cost in Romania.

Specifications:

Cutting range -0° to 0°

Fixed angle stops at 90°, 75°, 67.5°, 60°, 45°, 35° and 20° for making cuts without having to set the angle; the remaining positions can be set using a graduated scale as a reference.

Additional lock on the sliding table for securing at intermediate angles

The special sliding table design prevents sawdust from accumulating inside it

Diamond saw blade diameter: 400 mm

For safety reasons, the power supply is disconnected when the protective cover is opened

Vertical and horizontal pneumatic clamping kit

Adjustable cutting speed

The machine is equipped with digital measuring conveyors

Hydropneumatic and cooling systems for cutting aluminium profiles
