Semi-Automatic PVC Profile Corner Cleaning Machine (4 Milling Cutters) - CN601
PLASTMACH · code CN601
Buying as a company? Business prices after approval
- Collection in person in Dumbrăvița, Timiș countyMonday–Friday 08:00–16:30
- Courier delivery — the cost is calculated in the basket at checkout
- Payment by bank transfer, or in cash on collection
- 12-month warranty
- Commissioning and training on request
Technical specifications
| Dimensions (L × W × H) | 750 × 1050 × 1400 mm |
|---|---|
| Weight | 285 kg |
| Warranty | 12 months |
| Power Supply | 380 V, 3 ph, 50-60 Hz |
| Spindle Speed | 2810 RPM |
| Total Power | 2.3 kW |
| Motor Power | 2x1.1 kW |
| Air Consumption | 11 L/min |
| Air Pressure | 6-8 bar |
| Machine Height | 1400 mm |
| Machine Depth | 1050 mm |
|---|---|
| Machine Width | 750 mm |
| Machine Weight | 285 kg |
| Max. Processable Profile Height | 100 mm |
| Min. Processable Profile Height | 40 mm |
| Max. Processable Profile Width | 125 mm |
| Blade Arbor Diameter | 32 mm |
| Max. Blade Width | 220 mm |
| Surface Cleaning Cutter Width | 3 mm |
| Surface Cleaning Cutter Depth | 0 - 0,5 mm |
Description
Installation and training included in the price.
FREE delivery in Romania.
The machines and equipment we sell are CE certified.
CN601 (equipped with 4 milling cutter sets)

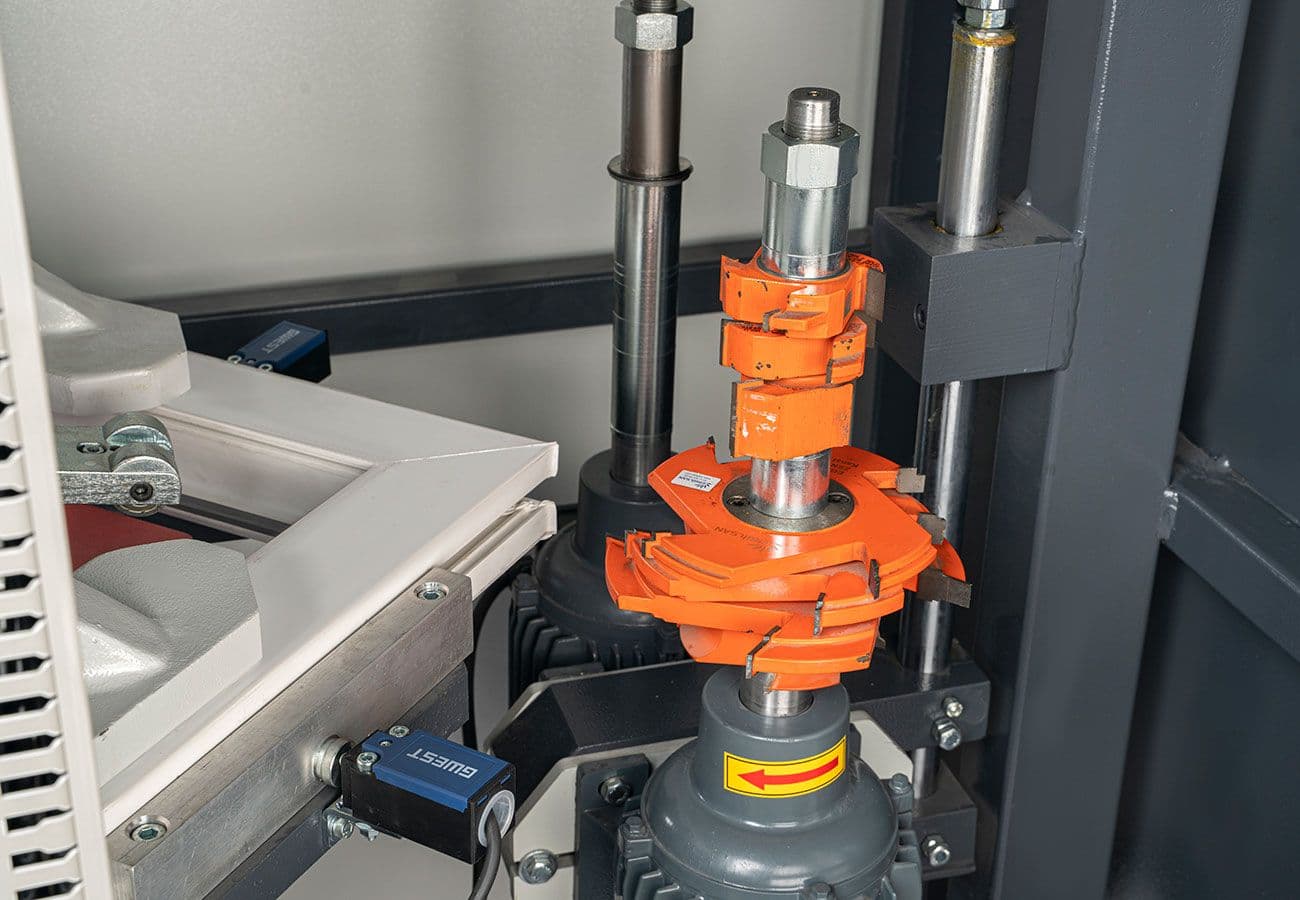

Quick Cutter Change
When working with a different profile, the cutter set can be changed quickly at the touch of a button.
Adjustable Cutter Unit
The easily adjustable horizontal and vertical cutter units allow the upper, lower and outer corners of the profile to be cleaned in a single operation.
Maximum Durability
The machine's service life is maximised with motion-sensitive sensors and robust mechanical components.
Specifications:
> Designed to clean PVC profile corners of welding beads.
> Quick-change capability for up to 4 milling cutters at the touch of a button. (cutter change in 3 seconds).
> Automatic start upon profile insertion.
> Knives remove welding beads from the upper and lower surfaces, while milling cutters clean the outer corner.
> Automatic device for balanced frame positioning.
> Adjustable operating speed.
> Adjustable cleaning depth for cutting units and milling cutters.
> The special shape of the worktable allows the machining of small frames.
> PLC control system.
> Reinforced motor bearing shaft.
> Particular attention has been given to both mechanical and electrical safety measures.
> Pair of cutting units for upper and lower cleaning of uncoated profiles.
