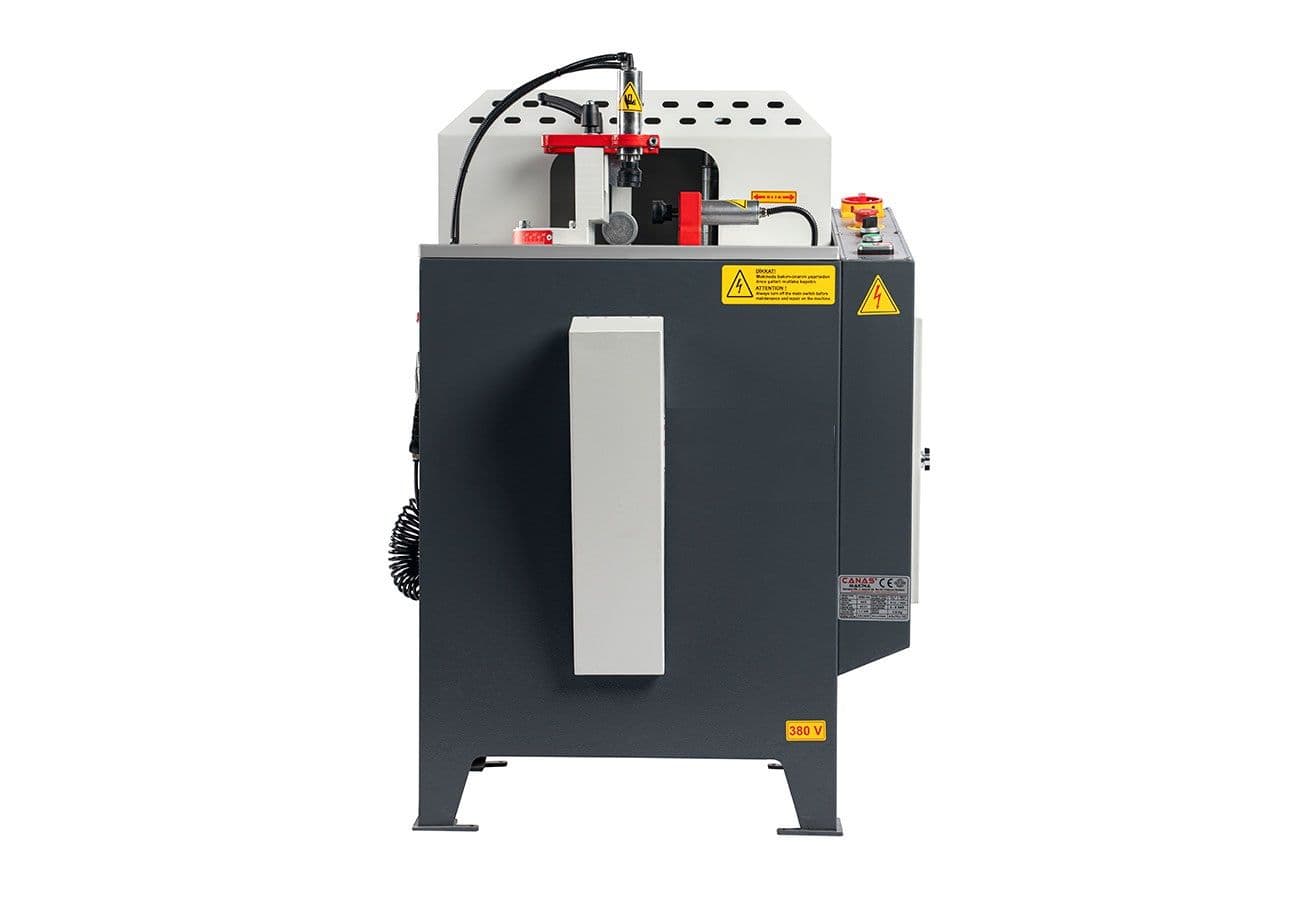

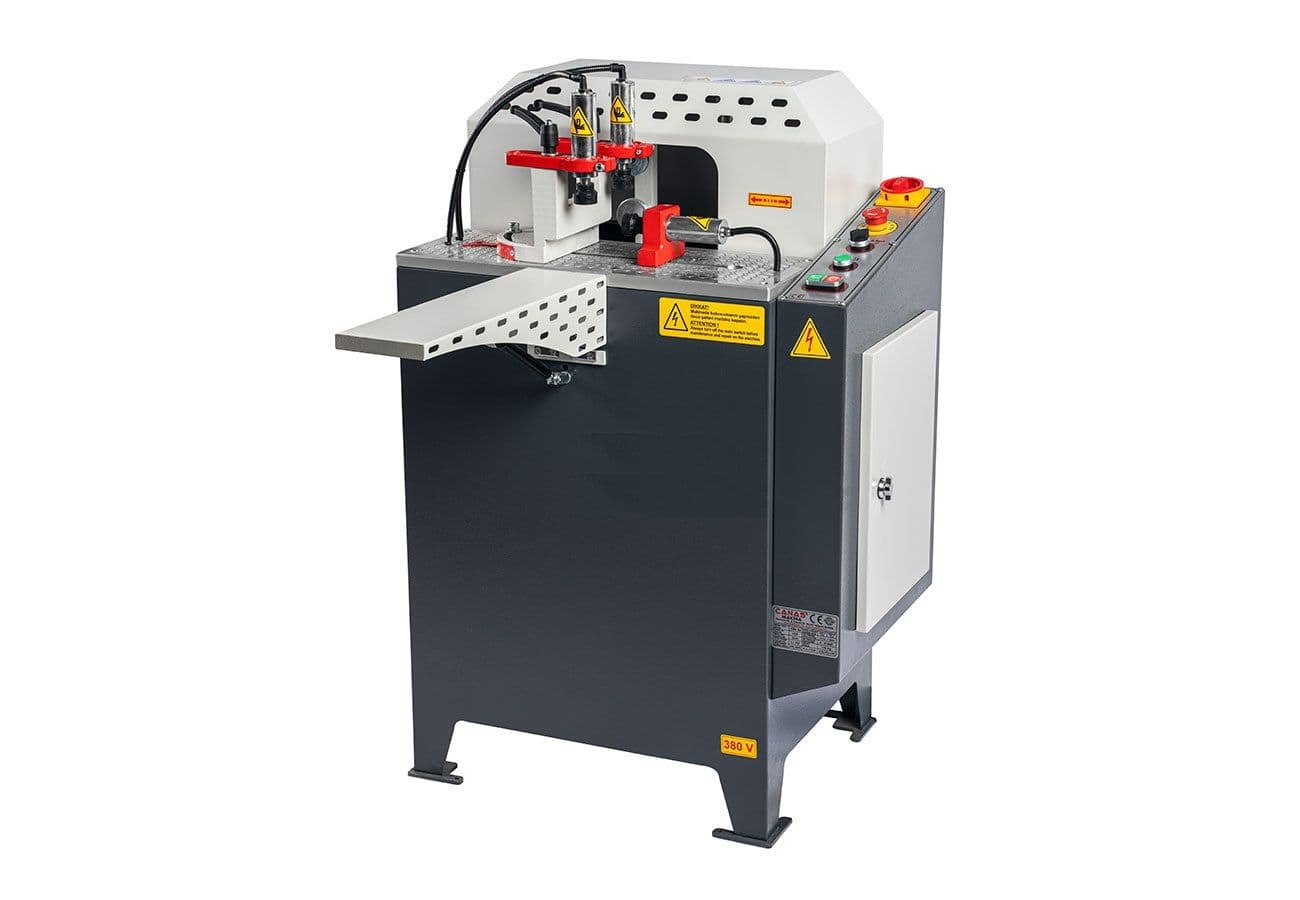

Mullion Milling Machine (2 Cutters) - CN211

Installation and training included in the price.

FREE delivery in Romania.

The machines and equipment we sell are CE certified.

Multiple Notch Depths

The rotary adjustment mechanism sets the cutter penetration depth into the profile without moving the cutter unit.

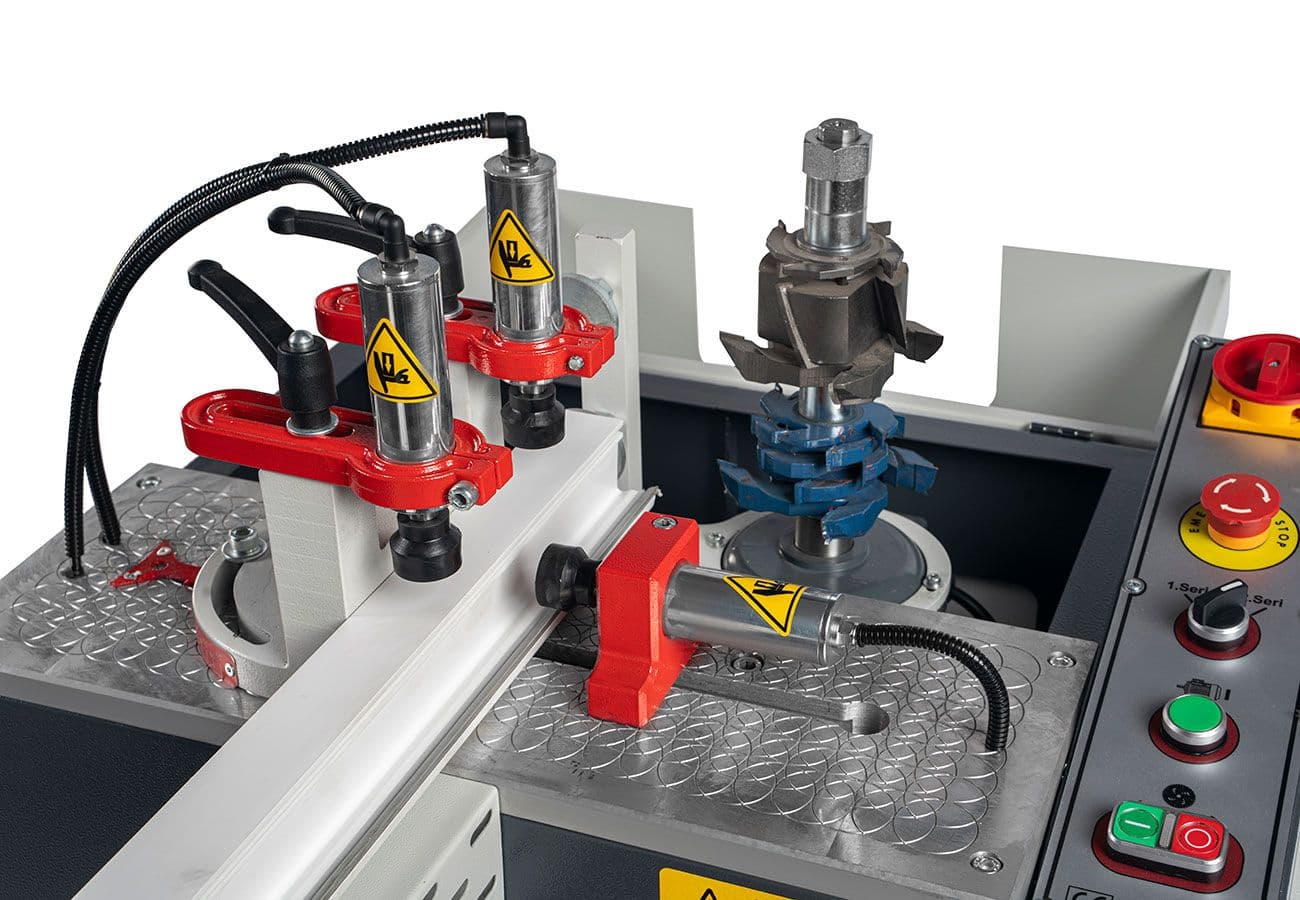

Automatic Series Cutter Change

When working with a different profile, the cutter can be changed quickly at the touch of a button.

Customised Support System

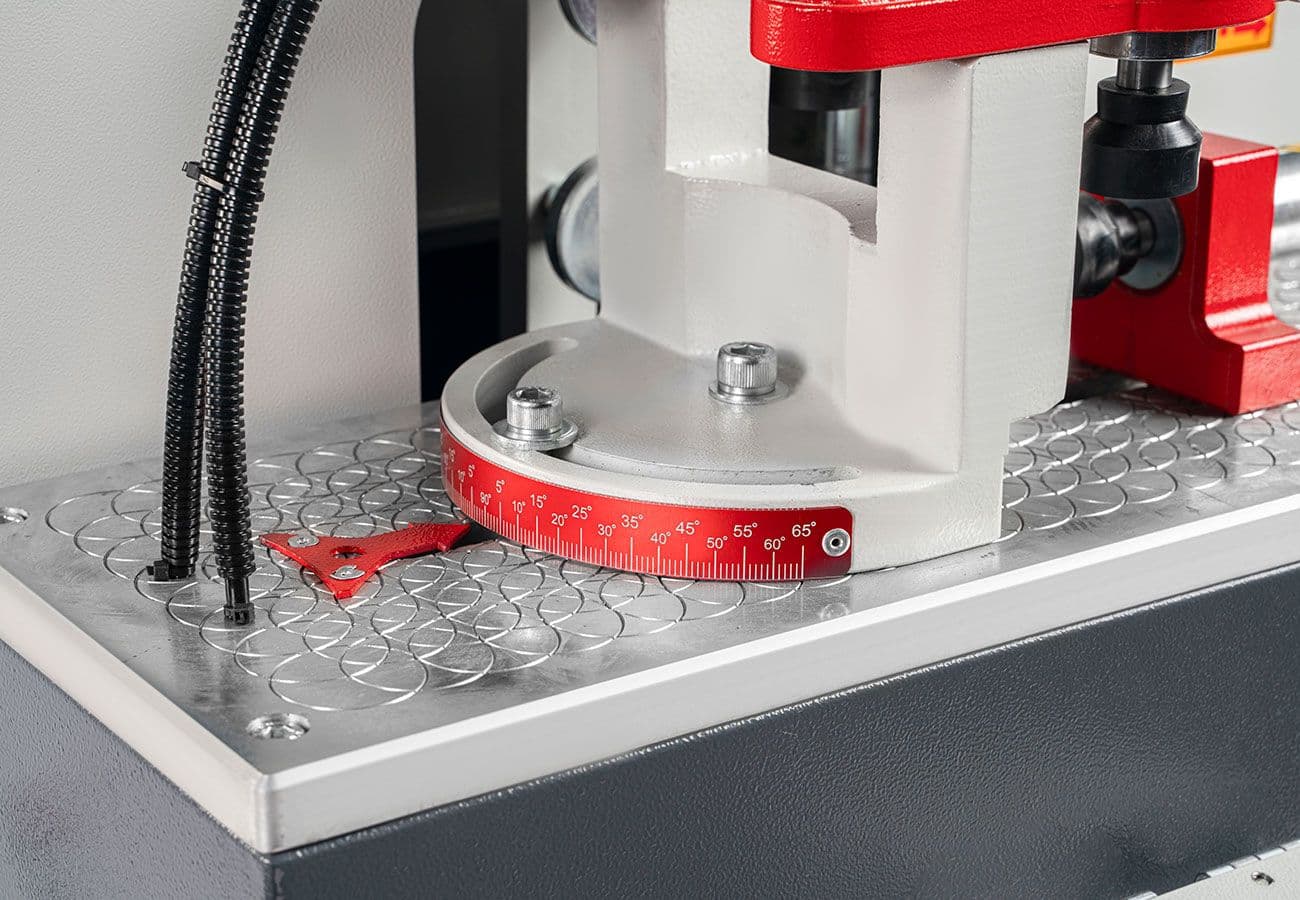

Thanks to the specially machined table and support system, which prevent the profile from moving, the profile can be positioned at various angles.

Specifications:

> Designed for end milling PVC profiles.

> Cutting range +45° / -45° and intermediate angles

> Automatic operating cycle

> Adjustable cutting speed with regulator

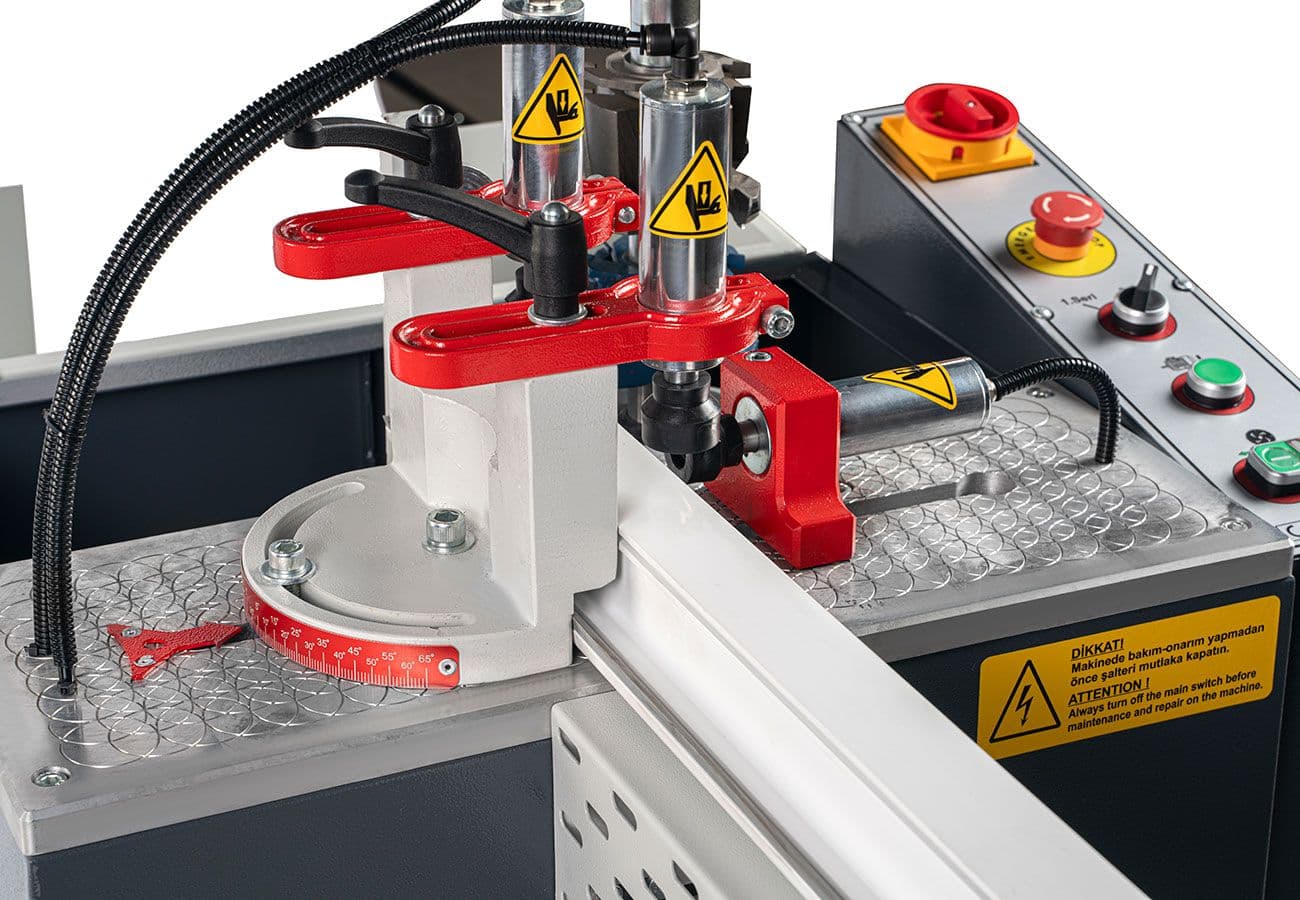

> Horizontal and vertical pneumatic clamping kit

> Cutter units with pneumatic quick-change cutter system when changing profile systems

> Special groove in the stop plate for optimum profile clamping

> Reinforced motor bearing shaft

> Profile support arm

Optional:

>Hydropneumatic and cooling systems for cutting aluminium profiles
