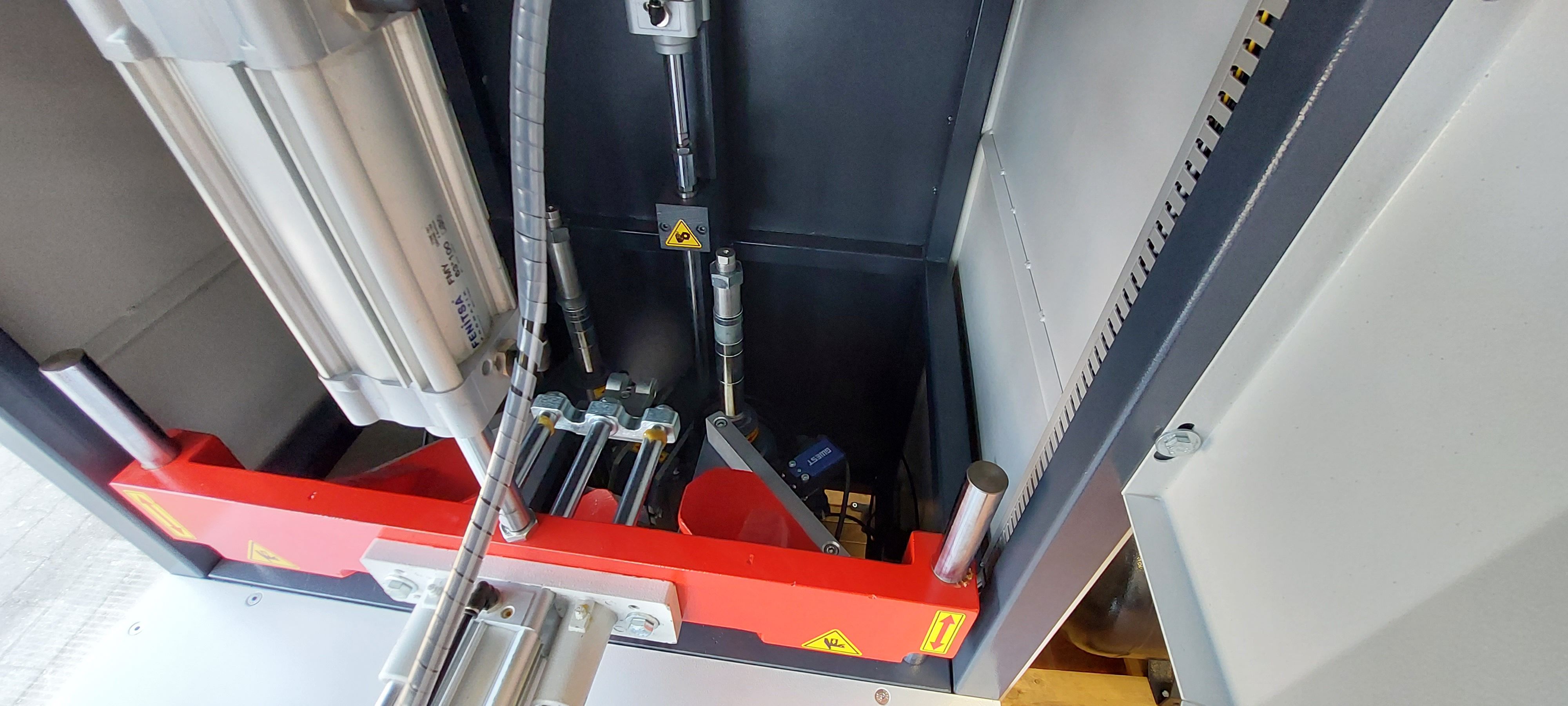

The displayed price is without VAT. Immediate delivery from stock. Delivery anywhere in the country at extra cost. The machines and equipment we sell have CE certification. CN601 (equipped with 4 sets of cutters) CHANGING THE BLADE SERIES When working with another profile, the blade set can be quickly changed with the help of a button. ADJUSTABLE BLADE GROUP The fact that horizontal and vertical blade groups are easy to adjust allows cleaning of the upper, lower, and outer corners of the profile in a single operation. MAXIMUM DURABILITY The machine's lifespan is maximized with motion-sensitive sensors and robust mechanical elements. SPECIFICATIONS: > Designed to clean the corners of PVC profiles of welding seals. > Easy blade change capability by pressing a button up to 4 cutters. (change the blade in 3 seconds). > Automatic start by inserting the profile. > The knives remove the welding seals on the top and bottom and the cutters on the exterior angle. > Automatic device for balanced frame positioning. > Adjustable operating speed. > Adjustable cleaning depth for cutting devices and cutters. > The special shape of the work plate allows processing of small frames. > PLC control system. > Reinforced motor bearing axis. > Special attention was paid to safety measures, both mechanical and electrical. > Coupling cutting devices for upper and lower cleaning for uncoated profiles. TECHNICAL SPECIFICATIONS: Power supply > 380V, 3 ph, 50-60 Hz Shaft speed > 2810 RPM Total power > 2.3 kW Motor power > 2x1.1 kW Air consumption > 11 lt/min Air pressure > 6-8 bar Machine height > 1400 mm Machine depth > 1050 mm Machine width > 750 mm Machine weight > 285 kg Max. Profile height processable > 100 mm Min. Profile height processable > 40 mm Max. Profile width processable > 125 mm Blade sleeve diameter > 32 mm Max. Blade width > 220 mm Surface cleaning cutter width > 3 mm Surface cleaning milling depth > 0 - 0.5 mm
