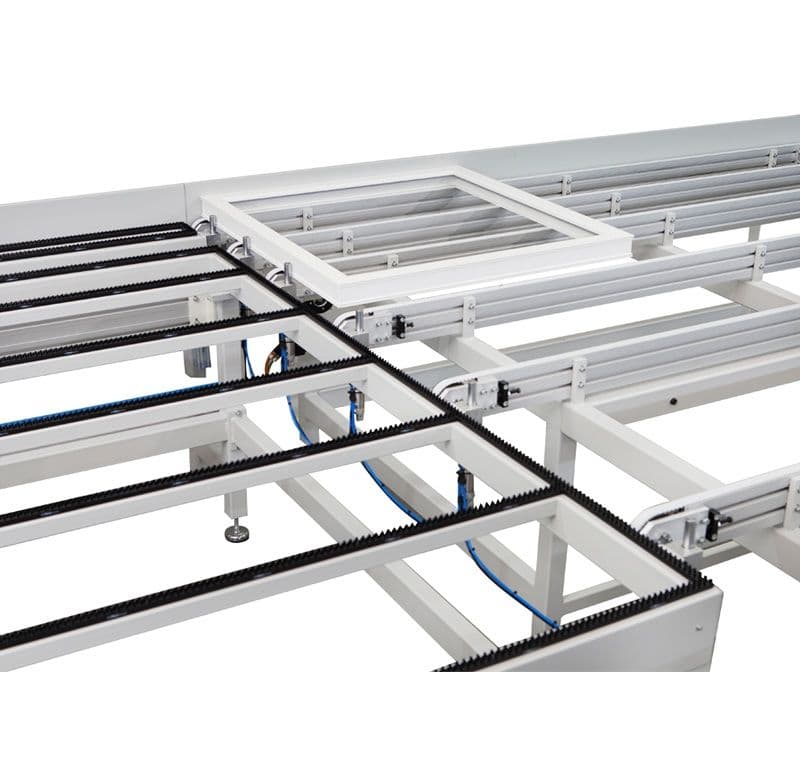

4-Head Welding and CNC Corner Cleaning Automation Line - SL901

Delivery available anywhere in Romania and Europe, at extra cost.

The machines and equipment we sell are CE certified.

FW-441

- Produces a frame by simultaneously welding all four corners of PVC profiles at 90-degree angles. - Mobile operator panel with 10" industrial touchscreen

- CNC control system (3 axes)

- Teflon wrapping system for heating plates

- Capability to weld white and coloured profiles with a 0.2 mm weld seam

- Practical die design allows easy replacement

- Ability to monitor heating elements on the screen

- Precise measurements are achieved thanks to the hardened ball screw and rack-and-pinion system

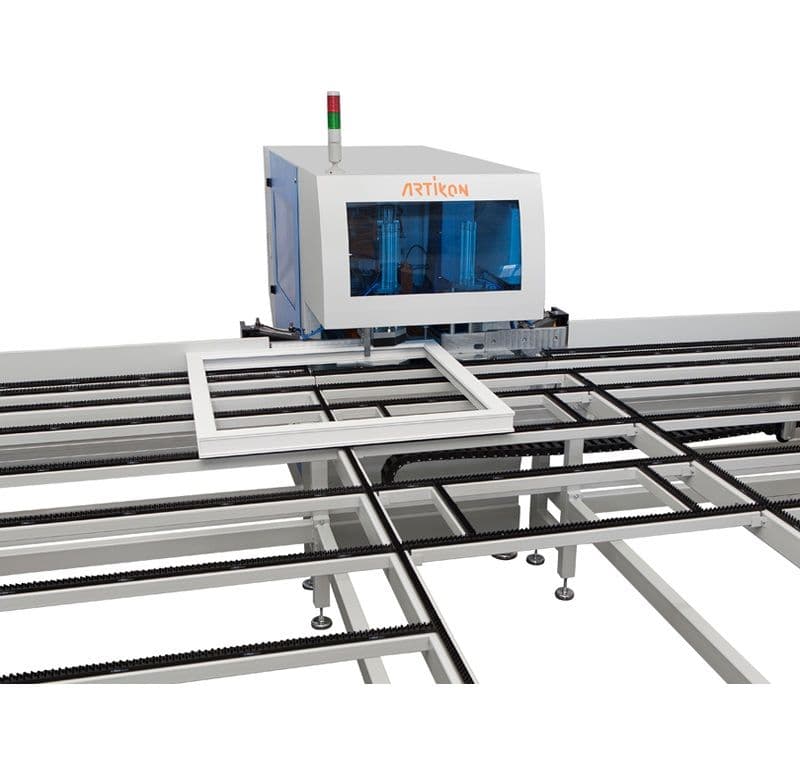

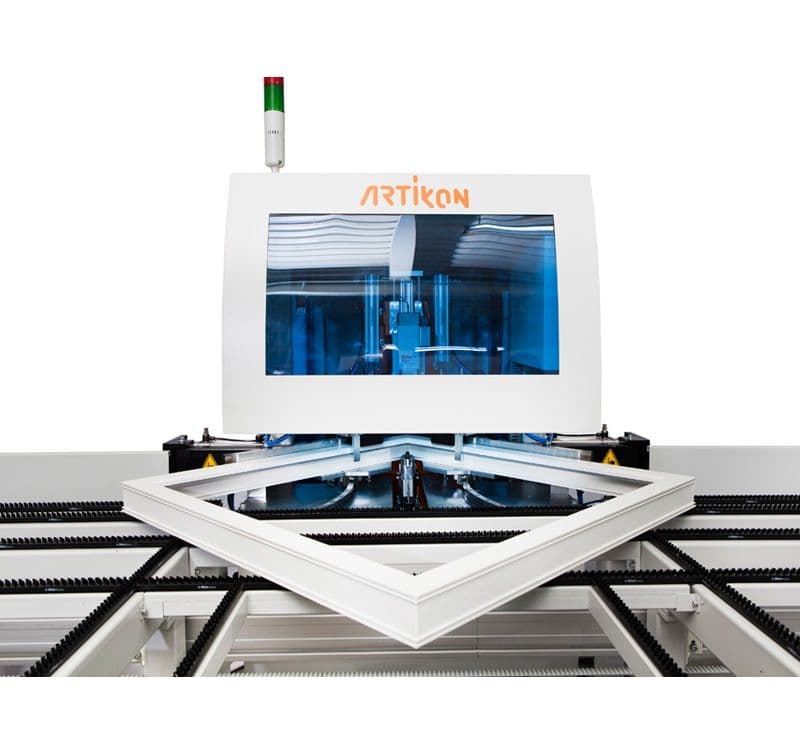

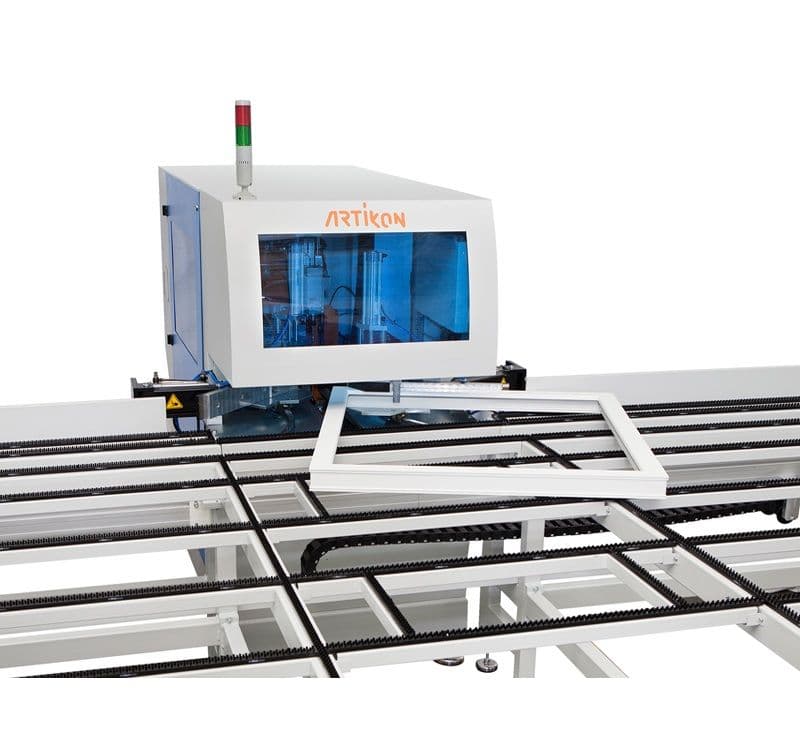

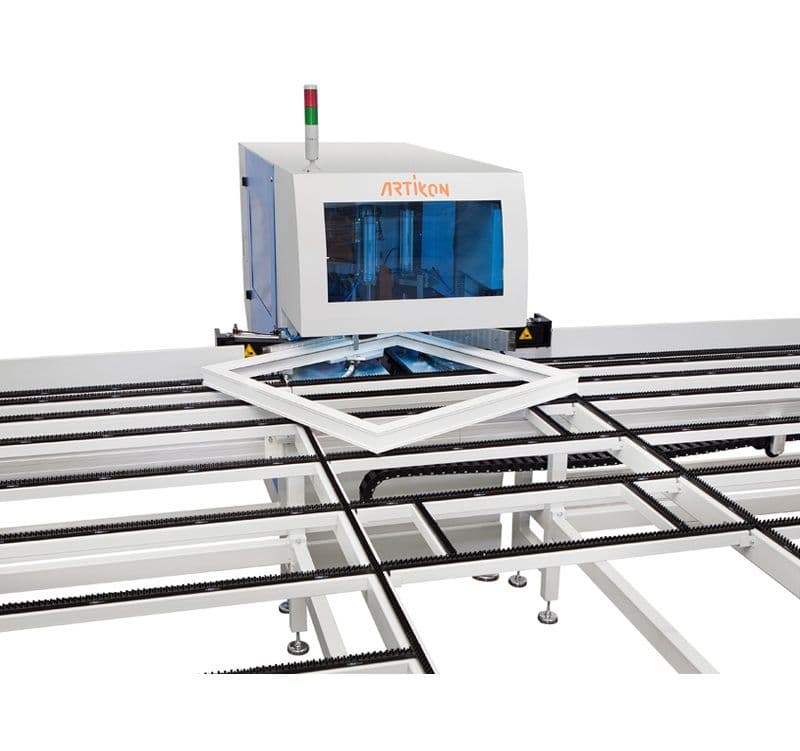

CC-223

- Welding bead cleaning machine for welded PVC frames

- Mobile control panel with 10" touchscreen

- Automatic PVC frame turning system

- CNC control system (2 axes)

- Easy profile programming and profile definition system

- Storage of all required recipes using flash memory

- Separate blade selection for white and coloured profiles

Options:

- Barcode system

- Die tooling

- Gasket printing system

- Can be configured according to machine operating conditions (reverse or straight line)

- Preheated blade system for efficient welding of cold profiles in winter conditions
