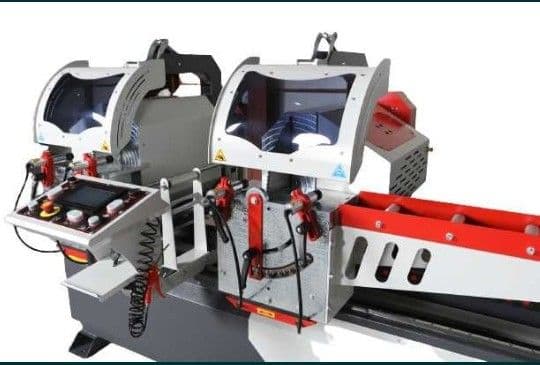

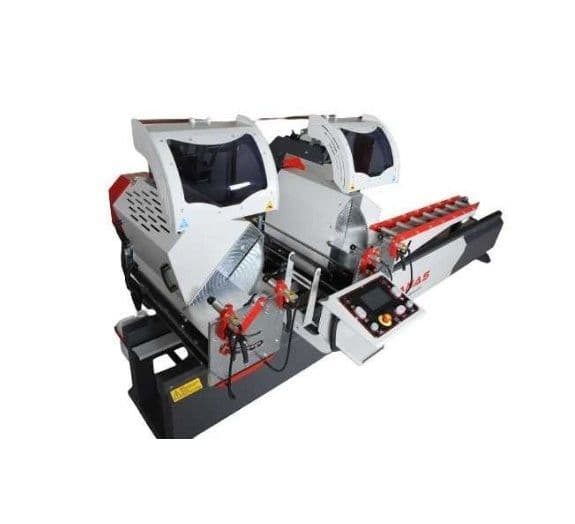

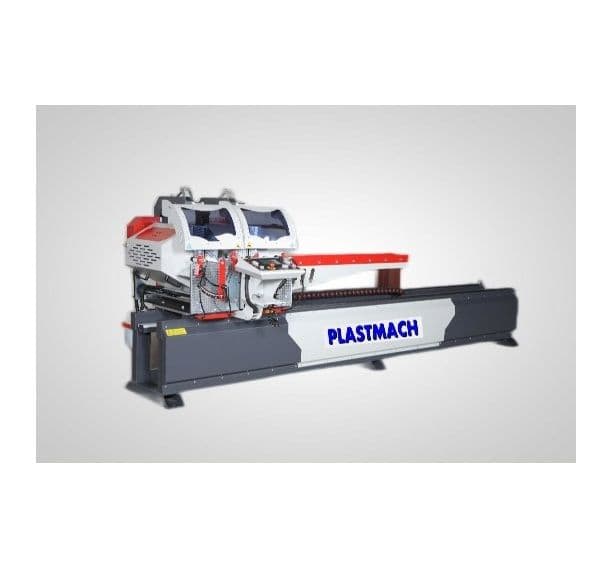

2-Head Aluminium & PVC Profile Cutting Machine (500 mm) with Servo Motor - CN400S
PLASTMACH · code CN400S
78.640,78 RON
excl. VAT 64.992,38 RON · / unit
AcționarePneumatica
Buying as a company? Business prices after approval
- Collection in person in Dumbrăvița, Timiș countyMonday–Friday 08:00–16:30
- Courier delivery — the cost is calculated in the basket at checkout
- Payment by bank transfer, or in cash on collection
- 12-month warranty
- Commissioning and training on request
Technical specifications
| Dimensions (L × W × H) | 1050 × 3950 × 1600 mm |
|---|---|
| Weight | 850 kg |
| Warranty | 12 months |
| Power Supply | 380-400 V, 3 ph, 50-60 Hz |
| Motor | 2 x 3 kW / 2860 RPM |
| Air Pressure | 6-8 bar |
| Air Consumption | 50 L/min (with cooling system 200 L/min) |
| Machine Height | 1600 mm |
| Machine Depth | 1050 mm |
| Machine Width | 3950 mm |
| Machine Weight | 850 kg |
| Saw Blade Outside Diameter | Ø500 |
|---|---|
| Maximum Saw Blade Height | 170 mm |
| Saw Blade Bore Diameter | Ø32 |
| Saw Blade Thickness | 4.0 mm |
| Number of Teeth | 120 |
| Max. Horizontal Blade Travel | 172 mm |
| Vertical | 240 mm |
| Min. machinable profile length | 415 mm |
| Max. direct machining profile length | 3850 mm |
| Max. cutting capability via software | 7600 mm |
Description
Leasing Offer: 12, 24, 36 Months
FREE delivery in Romania.
The machines and equipment we market are CE certified.
Profile Clamping System
To ensure that every profile is securely fixed on the table in a more balanced way, there is a horizontal clamping system that applies pressure to the profile at 4 points.
PLC-Controlled Measuring System
Thanks to the PLC, the movable head is positioned precisely and quickly to the desired dimension.
Remote WhatsApp Support & Service
The company's special advantage is that window machinery is sold at affordable prices, one of the benefits of being both a manufacturer and seller. Technical support and service are now very close, via WhatsApp.

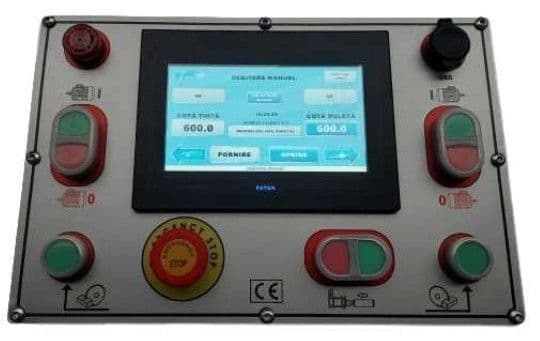

> The cutting length and angle are entered via the 7" LCD display on the control panel, available in Romanian & English.
> Automatic head positioning at 45° and 90°, with easy adjustment for intermediate angles
> Large memory capacity, including quantity, cutting lengths and angles.
> Manual cutting length adjustment option.
> PLC control system with Servo Motor
> Multilingual support in Romanian and English.
> Repetitive cutting programme, angle cutting – variable and fixed length – fixed angle.
> Extended-length cutting programme (up to 7.6 m).
> The diameter of the diamond saw blade is 500 mm.
> The blade projection is 172 mm, allowing the cutting of any type of window profile.
> A total of 4 horizontal pneumatic clamping cylinders.
> Adjustable cutting speed.
> Single-head operation option.
> Industrial dust extraction.
> Conveyor for the movable head.
> Intermediate profile support for cutting long lengths.
> Special attention has been paid to both mechanical and electrical safety measures.
> The power supply protects the system against voltage overload.
> Linear guide head movement.
> USB data transfer module from computer.
> Label printer.
> Cooling system for cutting aluminium profiles
Options:
> Hydropneumatic blade movement for cutting aluminium profiles.
> 220 V, 1 ph, 50-60 Hz power supply
