CNC Corner Crimping Machine (Fully Automatic) - CM721

Installation and training included in the price.

Delivery available anywhere in Romania and Europe, at extra cost.

Features:

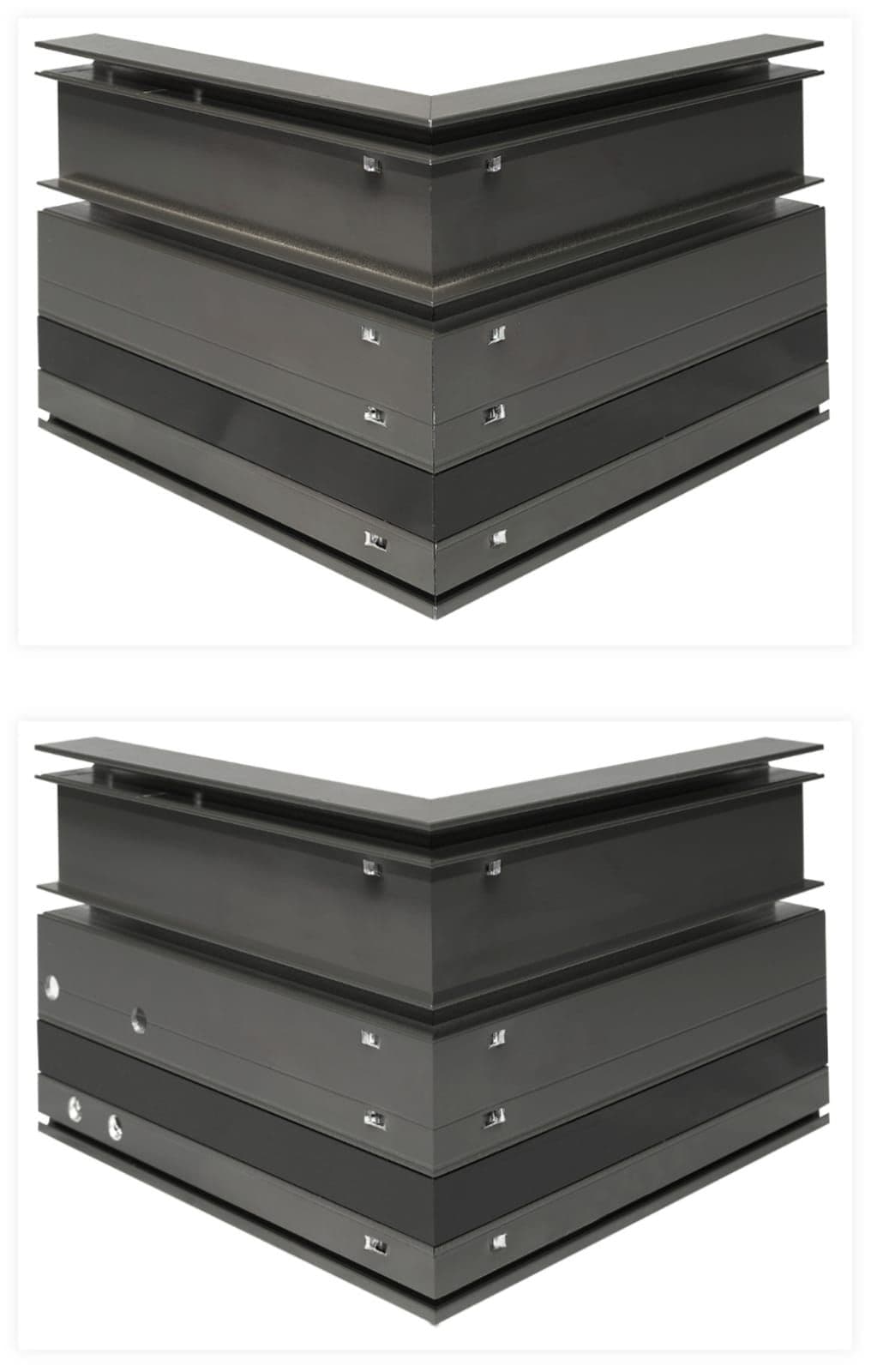

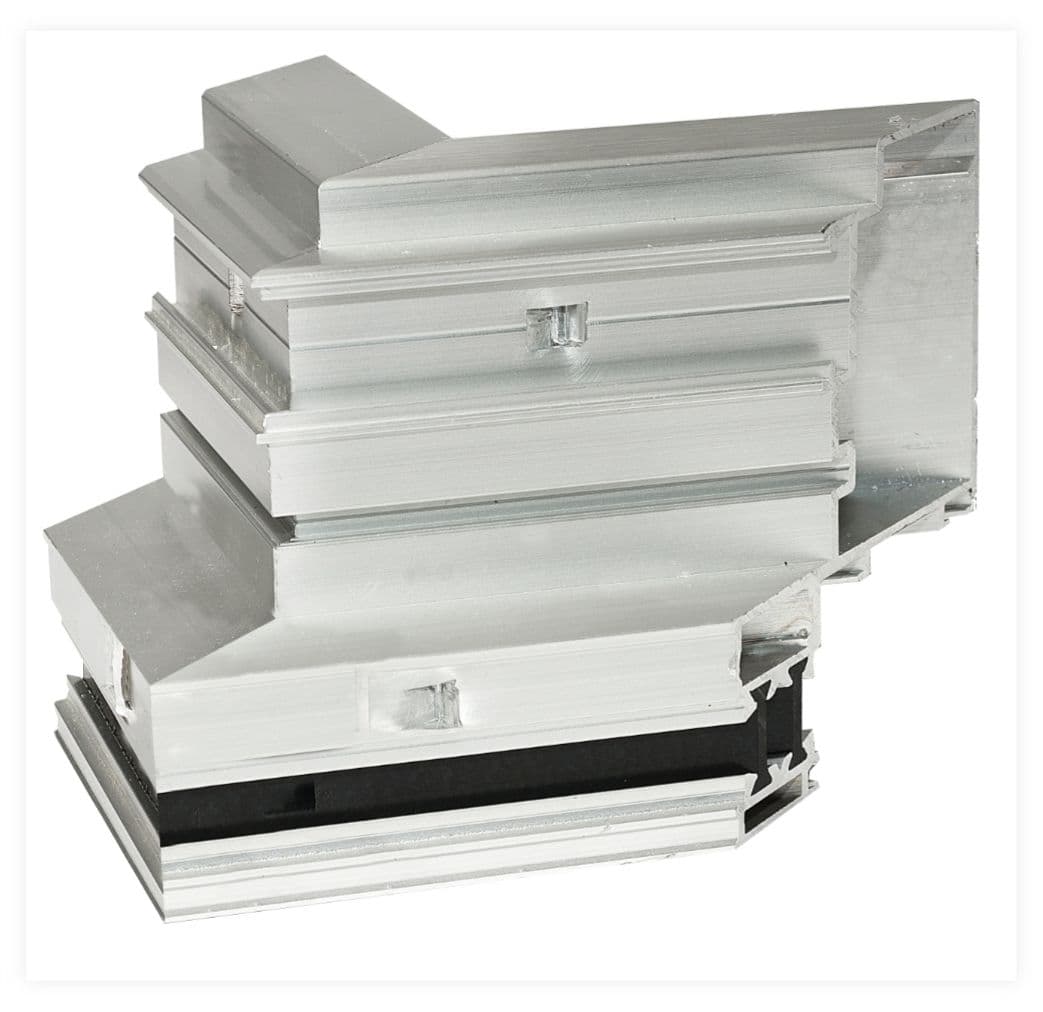

. Thanks to its automatic two-stage pressing feature, it is possible to crimp 8 points on each corner by pressing twice in a single operation, without moving the profile.

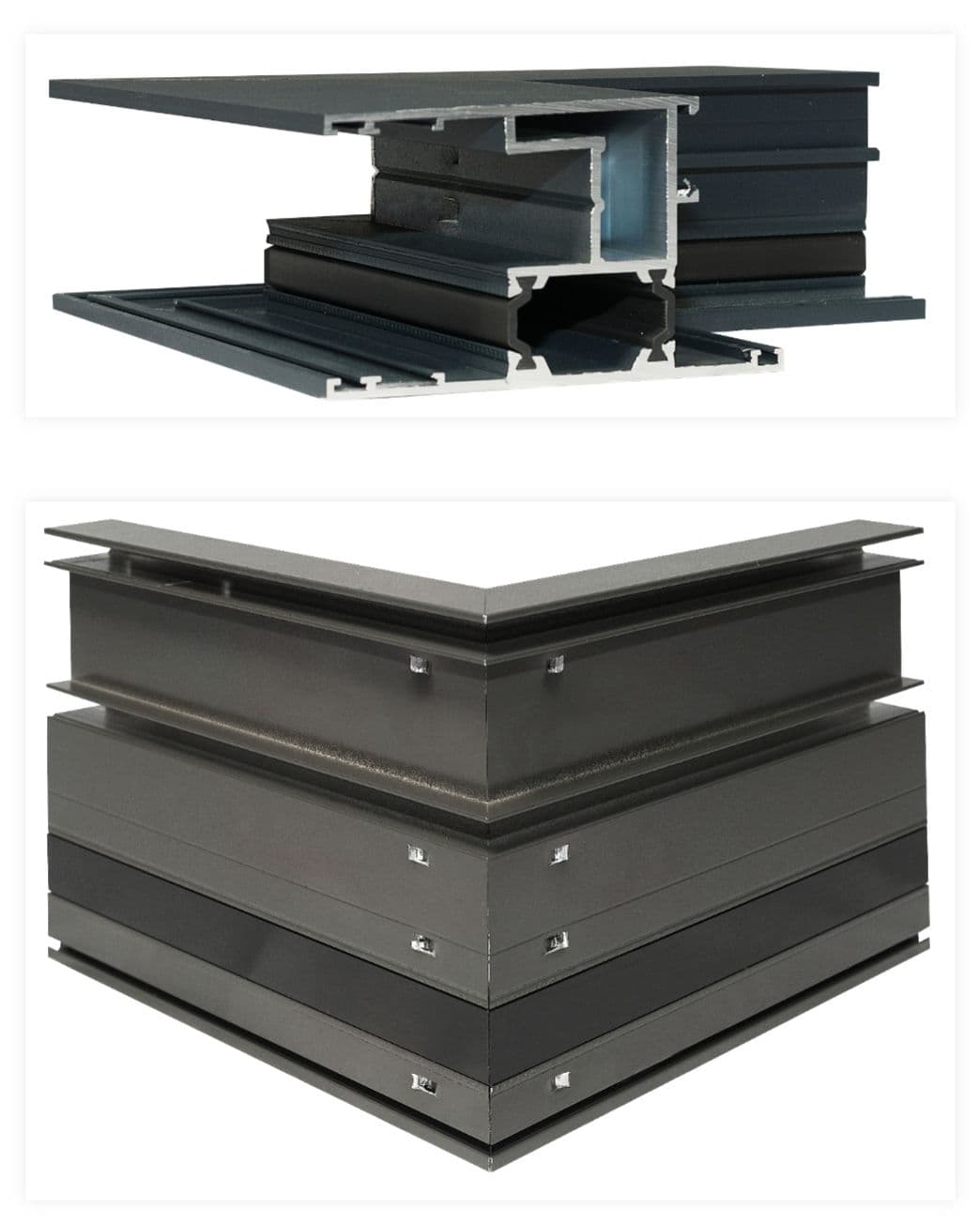

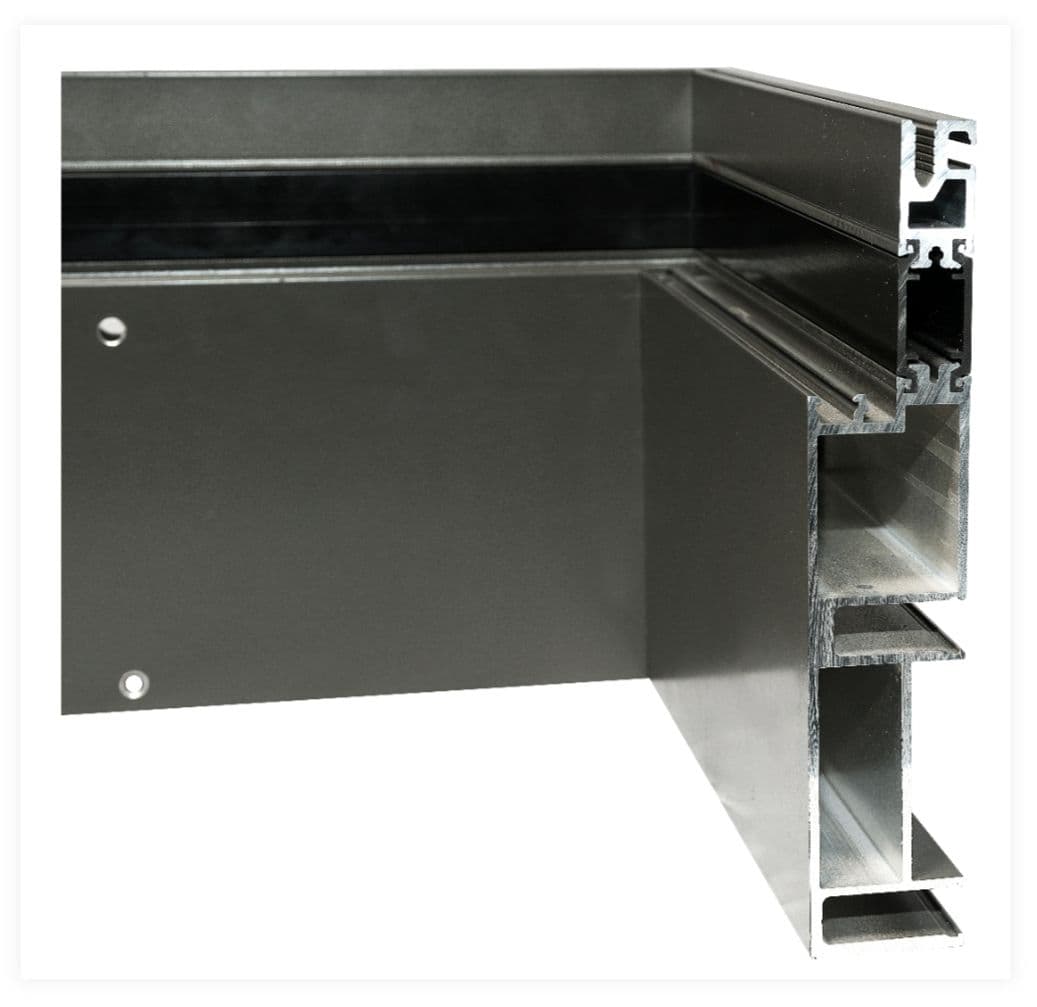

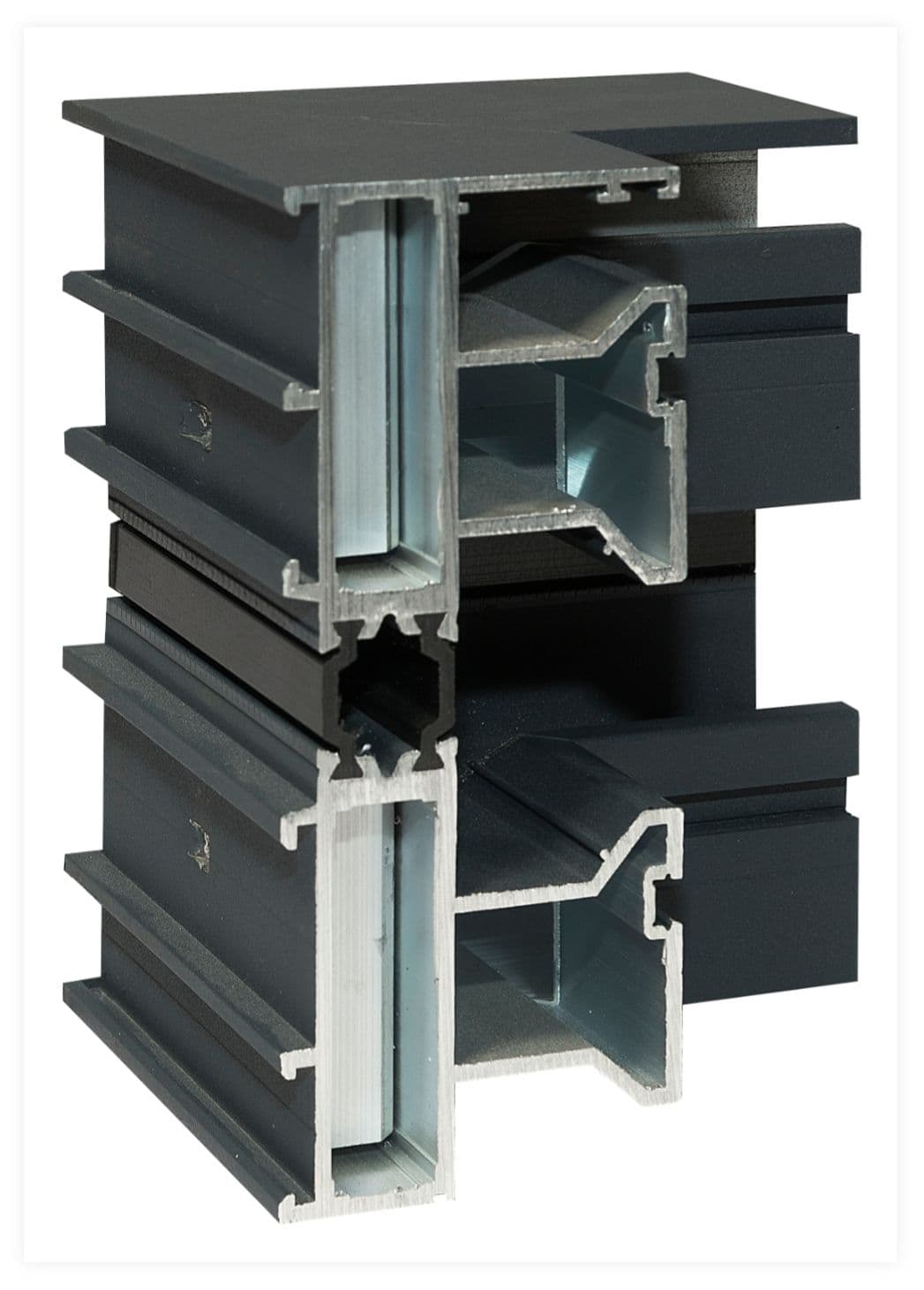

. The corner crimping machine is designed for the digital crimping of aluminium profiles.

. During series changeovers, it positions itself according to the dimensions with a single click, unlike its counterparts;

. Automatic knife stroke adjustment

. High production quality standards with automation system and 10-inch touchscreen control panel

. Computer-controlled program memory (500 pieces) for different wedge and profile series

. Compatible with any brand and profile series

. Automatic adjustment system for the front-back, up-down and right-left positions of the crimping knives

Automatic Adjustment of Knife Axis Movements

Automatic knife axis movements

1) V-block horizontal movement

2) V-block counter-mitre vertical movement

3) Complete adjustment of the crimping amount of the knife set

4) Complete lower-upper knife set horizontal longitudinal positioning

5) Complete lower-upper knife set vertical positioning

6) Upper knife horizontal transverse adjustment

7) Upper knife horizontal longitudinal adjustment

8) Upper knife vertical adjustment
